530 | Air flow switch | Dwyer

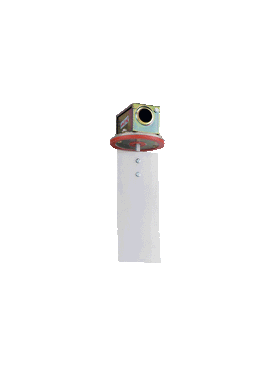

Air flow switch.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 530

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer 530 Documents

Instruction Manual Model 530 Catalog Page More Info

Overview

Details for 530

See catalog product page for full listing

Air flow switch

Model 530 Air Flow Switch

Adjustable from 400-1600 FPM, Stainless Steel Vane

The Model 530 Air Flow Switch provides excellent sensitivity and reliability at a very reasonable price. Quality features include a rugged die cast body, stainless steel vane and SPDT snap switch. Unit is field adjustable from 400-1600 FPM. Mounting is fast and simple, with only two screws needed. Vane fits 6" or larger ducts.

CAUTION: FOR USE ONLY WITH AIR OR NON-COMBUSTIBLE NON-CORROSIVE GASES. UNIT IS NOT SEALED AGAINST DUST.

Product Applications

Low air flow condition duct alarm.

Specifications

Service: Air and non-combustible gas flow.
Wetted Materials: Consult factory.
Vane: Stainless Steel.
Temperature Limit: 180°F (82°C).
Switch Type: SPDT.
Electrical Rating: 125 VAC: 9.8 amp full load 58.8 amp locked rotor. 250 VAC: 4.9 amp full load 29.4 amp locked rotor. Pilot Rating: 470 VA at 125; 250 VAC. Resistive: 15 amp at 125; 250; or 480 VAC.
Electrical Connections: Screw type terminal.
Conduit Connection: 7/8" conduit hole.
Mounting Orientation: Horizontal duct flow.
Set Point Adjustment: Screw type.
Weight: 1 lb; 1 oz (481.94 g).
Agency Approvals: UL; CE.
