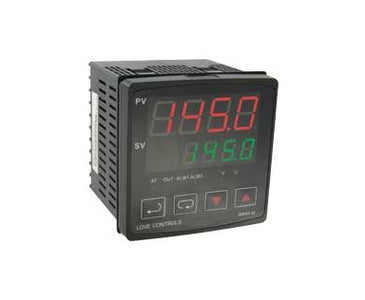

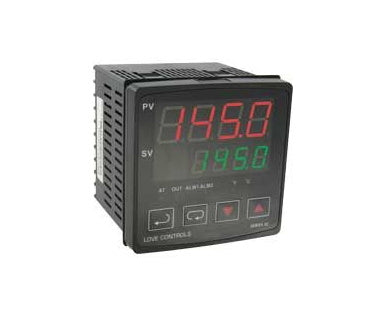

4C-2 | 1/4 DIN temperature controller | voltage pulse output. | Dwyer

1/4 DIN temperature controller, voltage pulse output.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 4C-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer 4C-2 Documents

4C Quick Start Snubber Application Note 4C Instruction Manual Series 4C Catalog Page More Info

Overview

Details for 4C-2

See catalog product page for full listing

1/4 DIN temperature controller | voltage pulse output.

Series 4C 1/4 DIN Temperature Controller

PID Control, Auto-Tuning, Large Dual Display, RS 485 Communication

The Series 4C 1/4 DIN Temperature Controller offers easy-to-use programming menus designed for quick installation. Control functions include ON/OFF, PID, auto-tuning or manual tuning. The Series 4C is available with relay, voltage or current output with two additional alarm outputs. The alarm outputs can be configured from 12 different preprogrammed settings. The Series 4C accepts a variety of thermocouple and RTD inputs. Process value and setpoint value are simultaneously displayed with the process value in red and setpoint in green.

Product Applications

Oven, boiler, or chiller control
Hot plates/melt pots
Food service equipment
Environmental chambers
Packaging equipment

Universal input accepts RTD or thermocouple sensors
On/Off, PID, or manual output control
RS-485 standard on all models

Specifications

Series: 4C 1/4 DIN Temperature Controller
Category/Type: Process Control
Type: Process Controllers
Series: 4C 1/4 DIN Temperature Controller
Inputs: Thermocouple or RTD (see Catalog page).
Display: Two 4-digit; 7 segment LED's. PV: red .75" H (19 mm); SV: green .5" H (12.7 mm).
Accuracy: 0.25% span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50/60 Hz.
Power Consumption: 5 VA max.
Operating Temperature: 32 to 122°F (0 to 50°C).
Memory Backup: Nonvolatile memory.
Control Output Ratings: Relay: SPDT; 5 A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Communication: RS-485 Modbus® ASCII communication protocol.
Weight: 15 oz (425 g).
Agency Approvals: CE; RoHS; cUL; UL.
Front Panel Rating: IP56.
