490A-5 | Wet/Wet handheld digital manometer | 0 to 500 psi (0 to 3448 kPa) | Dwyer

Wet/Wet handheld digital manometer, 0 to 500 psi (0 to 3448 kPa)

Brand: DwyerSKU: 490A-5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 490A-5

Jump to: Overview & Specifications Reviews

Overview Details for 490A-5

See catalog product page for full listing

Wet/Wet handheld digital manometer | 0 to 500 psi (0 to 3448 kPa)

Series 490A Hydronic Differential Pressure Manometer

Liquid & Gas Pressure Measurement, ±0.5% FS Accuracy

The Series 490A Hydronic Differential Pressure Manometers are versatile, handheld, battery operated manometers available in several basic ranges for positive or positive differential pressure measurement and can tolerate most liquid media compatible with 316LSS. A new feature added to the Series 490A is a field adjustable damping, which allows the user to choose the level of display averaging rate corresponding to the fluctuation level common in many applications.

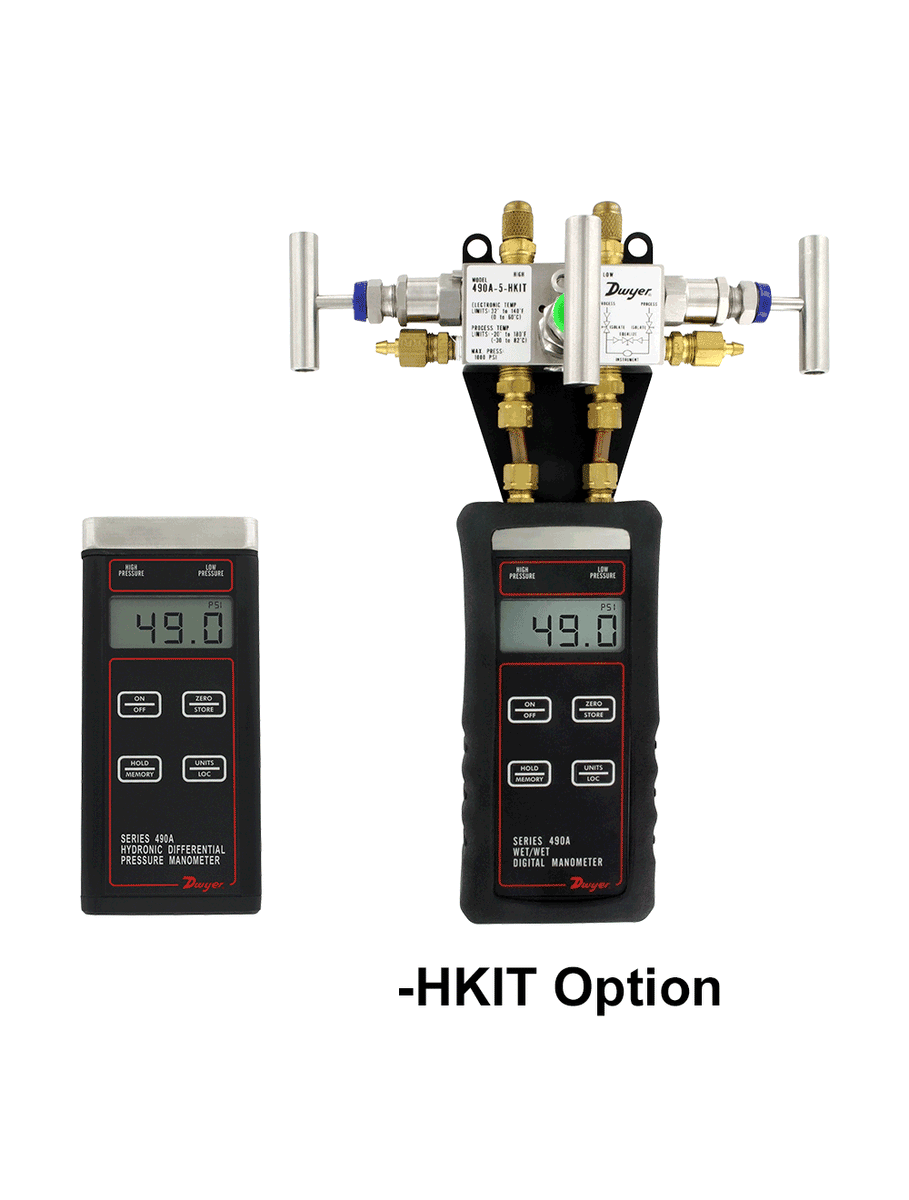

NEW! 490A-HKIT Option is located in the Product Configurator.

Hydronic meter kit includes: (2) six foot high-pressure rated tubing with shut off valves, high pressure 3-way valve, 8 ft poly tubing for purges, hard travel case, handheld carrying strap, 1/16" x 1 1/2", 1/8" x 3" and 1/8" x 1-1/2" pairs of pressure probes, 90° Flare to 1/4" NPT fittings, adjustable 8" wrench, PTFE Tape, and magnetic protective rubber boot. NIST Calibration Certificate comes standard.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Chiller to coils for freeze protection
Hydronic valve balancing
Measure pressure drop across pumps
Refrigerant pressure testing

Seven user-selectable English and metric units
Stores up to 40 readings for later recall
Backlight for use in dim areas
Digital dampening for low pressure - high resolution logging accuracy
Automatic resolution adjustment for finer control

Specifications

Series: 490A Hydronic Differential Pressure Manometer
Category/Type: Pressure
Type: Manometers
Series: 490A Hydronic Differential Pressure Manometer
Service: Compatible gases & liquids.
Wetted Materials: Without valve: 316L SS; -3V option: 316LSS; Buna-N; silicone; grease; PTFE; brass 360; copper; reinforced acetal copolymer.
Accuracy: ±0.5% FS; 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% FS.
Pressure Limits: See chart on catalog page.
Electronic Temperature Limits: 32 to 140°F (0 to 60°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4 digit LCD.
Resolution: See chart on catalog page.
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Process Connections: Two 1/8" (3.18 mm) female NPT.
Weight: 14.1 oz (400 g).
Agency Approvals: CE.
