477B-2 | Handheld digital manometer | 0 to 40" w.c. (0 to 9.96 kPa) | Dwyer
Handheld digital manometer, 0 to 40" w.c. (0 to 9.96 kPa)
Documents and manuals
Dwyer 477B-2 Documents
Overview
Details for 477B-2
Handheld digital manometer | 0 to 40" w.c. (0 to 9.96 kPa)

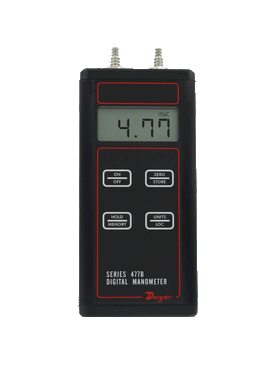

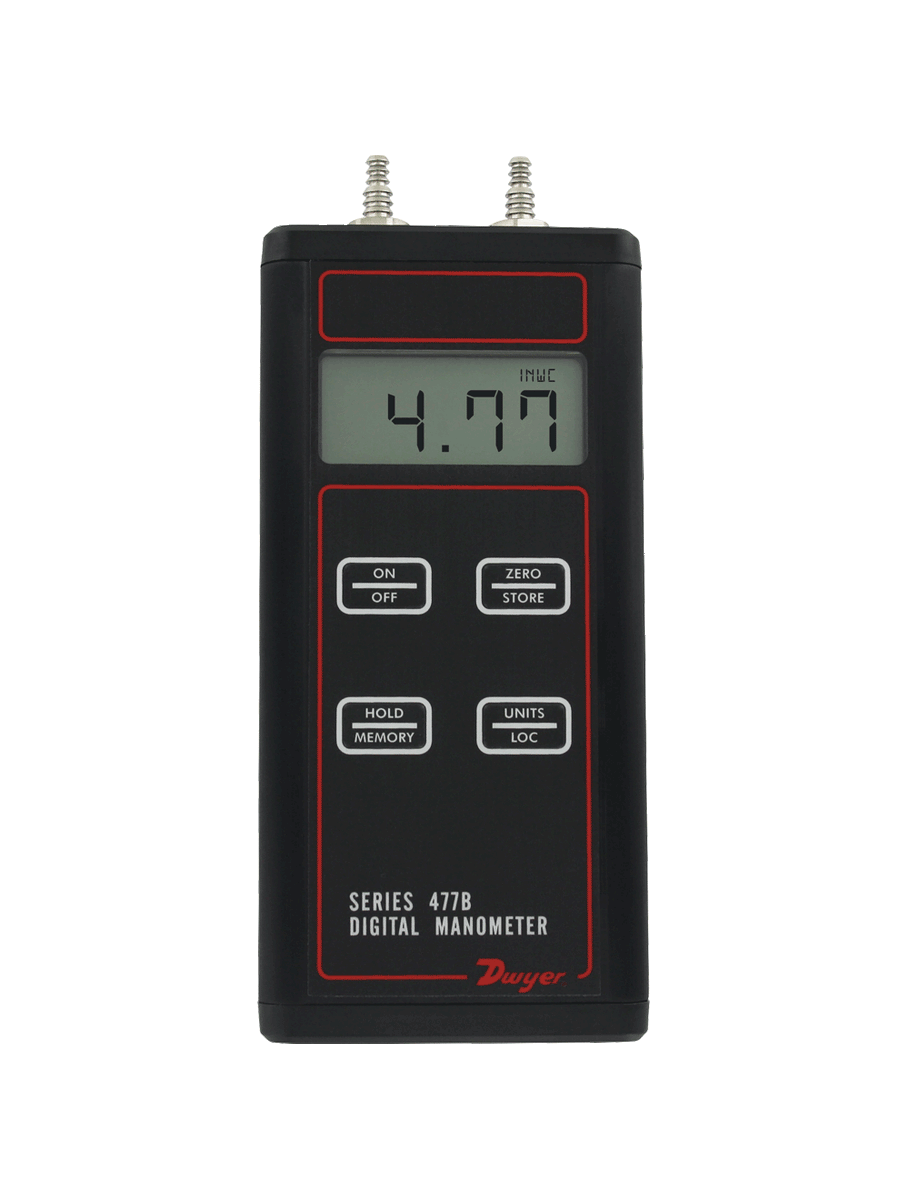

Series 477B Handheld Digital Manometer
The Series 477B Handheld Digital Manometers are versatile, hand-held, battery operated manometers available in several basic ranges from 0-20 in w.c. up to 100 psi. All models measure either positive, negative or differential pressures with ±0.10% of full scale accuracy. You can select from up to seven common English and metric pressure units so conversions are not necessary. A memory function allows storage of up to 40 readings for later recall and a backlight provides auxiliary lighting for hard-to-see locations. Also standard are a hold feature plus both visual and audible overpressure alarms.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Lab calibration of other pressure instruments
- Air velocity/air flow measurements in commercial buildings
- Precise 0.1% FS accuracy provides four times better accuracy than most standard manometer/gages
- Aluminum housing protects instrument against damage
- 40 readings in internal memory reduces time to record data
Specifications
- Series
- 477B Handheld Digital Manometer
- Category/Type
- Pressure
- Type
- Manometers
- Series
- 477B Handheld Digital Manometer
- Service
- Air and compatible gases.
- Wetted Parts
- Consult factory.
- Accuracy
- ±0.10% of full scale from 60 to 78F° (15.6 to 25.6°C); ±1% of full scalefrom 32 to 60 and 78 to 104°F (0 to 15 .6 and 25.6 to 40°C).
- Pressure Hysteresis
- ±0.1% of full scale.
- Pressure Limits
- See chart on catalog page.
- Temperature Limits
- 0 to 140°F (-17.8 to 60°C).
- Storage Temperature Limits
- -4 to 176°F (-20 to 80°C).
- Display
- 4-digit LCD (.425" H x .234" W digits).
- Resolution
- See chart on catalog page.
- Power Requirements
- 9 volt alkaline battery; included but not connected.
- Connections
- Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76mm) I.D. tubing for 477B-1; 477B-2; 477B-3; 477B-4 and 477B-5 only. Twocompression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubingfor 477B-6 and 477B-7 only.
- Weight
- 10.2 oz. (289 g).
- Agency Approvals
- CE.
