Documents: 475-00T-FM-AV

Series 475 Instruction Manual 166T Instruction Manual Model 475-1T-FM-AV Catalog Page More Info

475-00T-FM-AV | Air velocity kit | range 0-4.00" w.c. | max. pressure 10 psig | kit includes static pressure tips | rubber tubing | telescoping Pitot tube | step drill | air velocity slide chart and carrying case | Dwyer

Air velocity kit, range 0-4.00" w.c., max. pressure 10 psig, kit includes static pressure tips, rubber tubing, telescoping Pitot tube, step drill, air velocity slide chart and carrying case

Brand: DwyerSKU: 475-00T-FM-AV

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 475-00T-FM-AV

Jump to: Overview & Specifications Reviews

Overview Details for 475-00T-FM-AV

See catalog product page for full listing

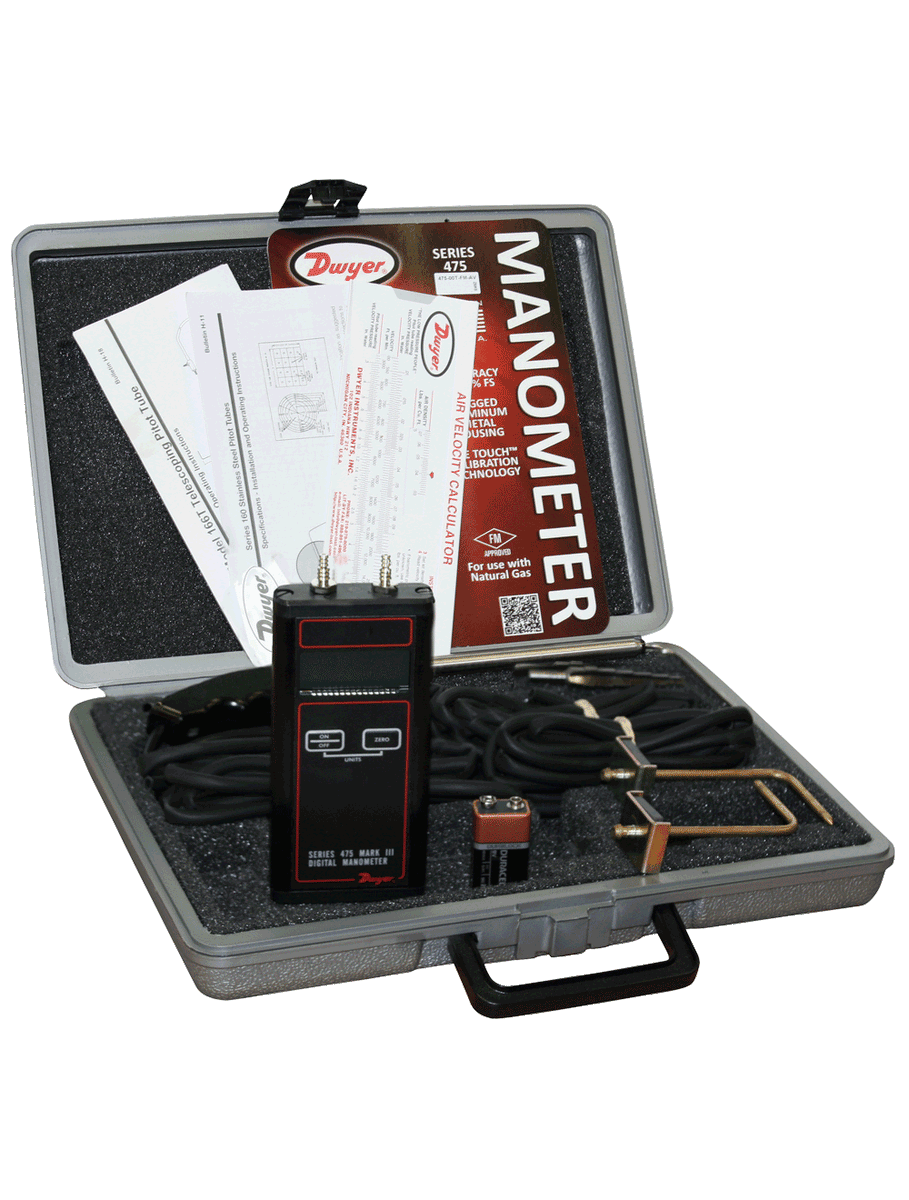

MODEL 475-1T-FM-AV AIR VELOCITY KIT

Includes Digital Manometer, Telescoping 36" Pitot Tube, Accessories

Convenient all-in-one kit is small, light and easy to use. No set-up or leveling needed. Digital manometer reads from 0-20.00" w.c. with ±0.5% F.S. accuracy and minor divisions to 0.01. Large 1/2" LCD readout is easy to see in poorly lighted areas and has "low battery" warning. Kit includes convenient telescoping Pitot tube, Model 166T, fully adjustable from 11.5 to 36 inches (29.2 to 91.4 cm). Also, two static pressure tips with magnetic mounting measure pressure drop across filters, condenser coils, etc. An indispensable test kit for the plant engineer, industrial hygienist and HVAC technician.

Complete Kit Includes:

Series 475 Handheld Digital Manometer (±0.5% FS accuracy and minor divisions to 0.01, large 1/2" LCD readout is easy to see in poorly lighted areas and has “low battery° warning)
Model 166T, 36" telescoping SS pitot tube, fully adjustable from 11.5" to 36" (29.2 to91.4 cm)
Two No. A-303 Static Pressure Tips with Magnetic Mounting
Two 4-1/2 Ft. Lengths 3/16" I.D. Rubber Tubing
No. A-397 Step Drill for 3/16" - 1/2" Holes in 1/16" Increments
No. A-532 AV Slide Chart
9 V Alkaline Battery
Fitted Polyethylene Case
