471B-1 | Digital thermo-anemometer | includes 9V battery | sensing probe | wrist strap | hard carrying case & instructions | Dwyer

Digital thermo-anemometer, includes 9V battery, sensing probe, wrist strap, hard carrying case & instructions

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 471B-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer 471B-1 Documents

Instruction Manual Model 471B Catalog Page 471B More Info

Overview

Details for 471B-1

See catalog product page for full listing

Digital thermo-anemometer | includes 9V battery | sensing probe | wrist strap | hard carrying case & instructions

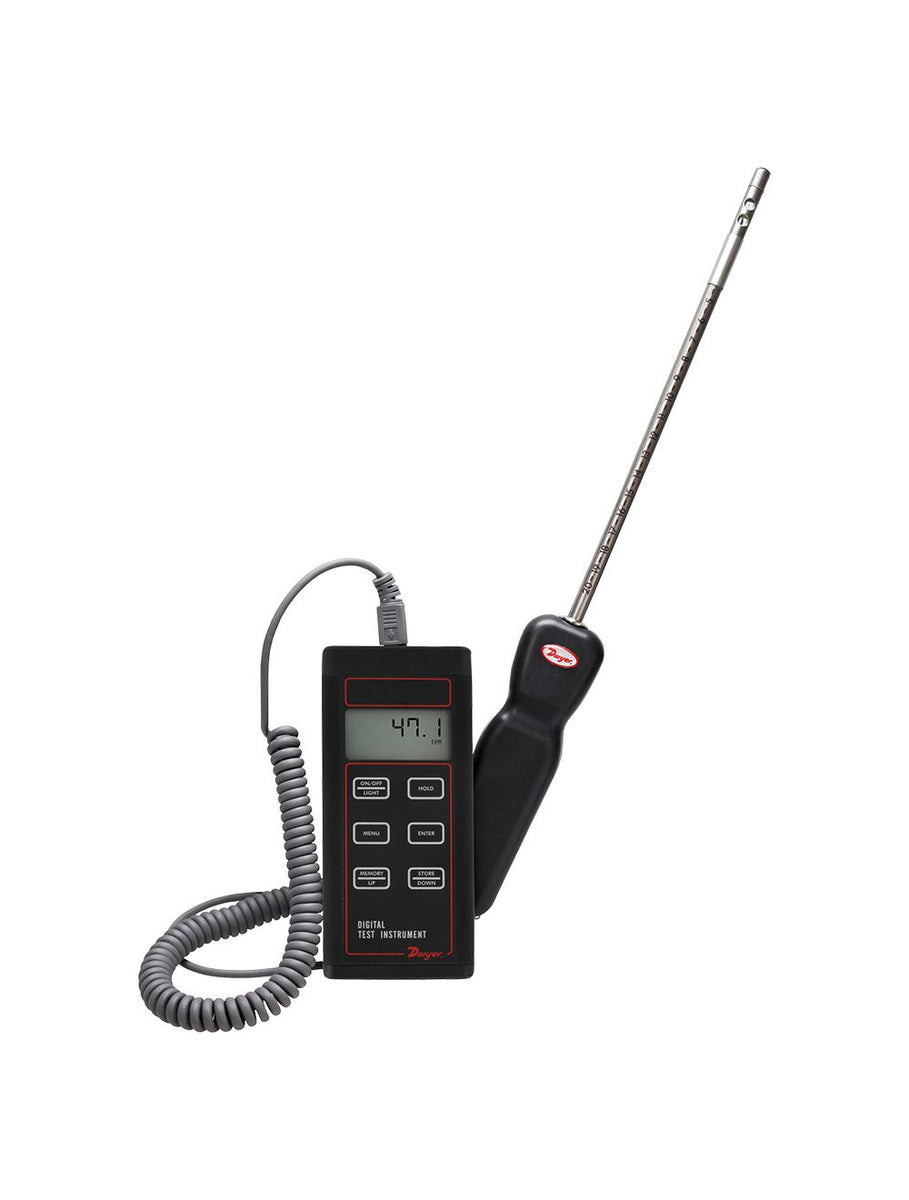

MODEL 471B THERMO-ANEMOMETER TEST INSTRUMENT

Measures Air Velocity or Air Volume and Temperature Simultaneously

The Model 471B Thermo-Anemometer Test Instrument is a versatile dual functionunit that quickly and easily measures air velocity or volumetric flow as well as airtemperature in imperial or metric units. A stainless steel probe is included, which hasa comfortable hand grip and etched insertion depth marks. The extruded aluminumhousing fully protects electronics, yet is lightweight and comfortable to hold.

NIST CALIBRATION available in Product Configurator.

Product Applications

Duct traverses
HVAC inspections
Testing and balancing

Compatible with Dwyer RP1 thermo-hygrometer and VP1 100 mm vane thermo-anemometer probes (sold separately)
Visible in any condition due to high contrast and backlit LCD display
Able to store up to 99 readings
Probe sensors are protected by the integral sliding cover
Built-in volumetric air flow calculations

Specifications

Service: Air velocity and temperature of clean; dry air.
Temperature Limits: Process Air Velocity: -20 to 212°F (-29 to 100°C);Process Temperature: -40 to 212°F (-40 to 100°C);Ambient: 5 to 125°F (-15 to 51°C).
Display: 4.5 digit LCD.
Resolution: 0.1%; 0.1°F/°C.
Air Velocity Range: 45 to 6000 FPM (0.23 to 30 m/s).
Air Velocity Accuracy: ±3% FS within temperature range of 40 to 90°F (4 to 32°C). -TAB option: ±5% of reading; not less than ±1.6 FPM (0.5 m).
Volumetric Air Flow Range: 19;999 in selected flow units.
Temperature Range: -40 to 212°F (-40 to 100°C).
Temperature Accuracy: ±0.5°F (±0.28°C) from 32 to 122°F (0 to 50 °C); ±1.5°F (±0.83°C) from -40°F to 32°F (-40 to 0°C) & 122 to 212°F (50 to 100°C).
Probe Length: 8" (203 mm) insertion.
Cable Length: 28" (71 cm) retracted; 6 ft (183 cm) extended.
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Weight: 16 oz (454 g).
Agency Approvals: CE.
