4380 | Process signal converter/isolator | Dwyer
Process signal converter/isolator.

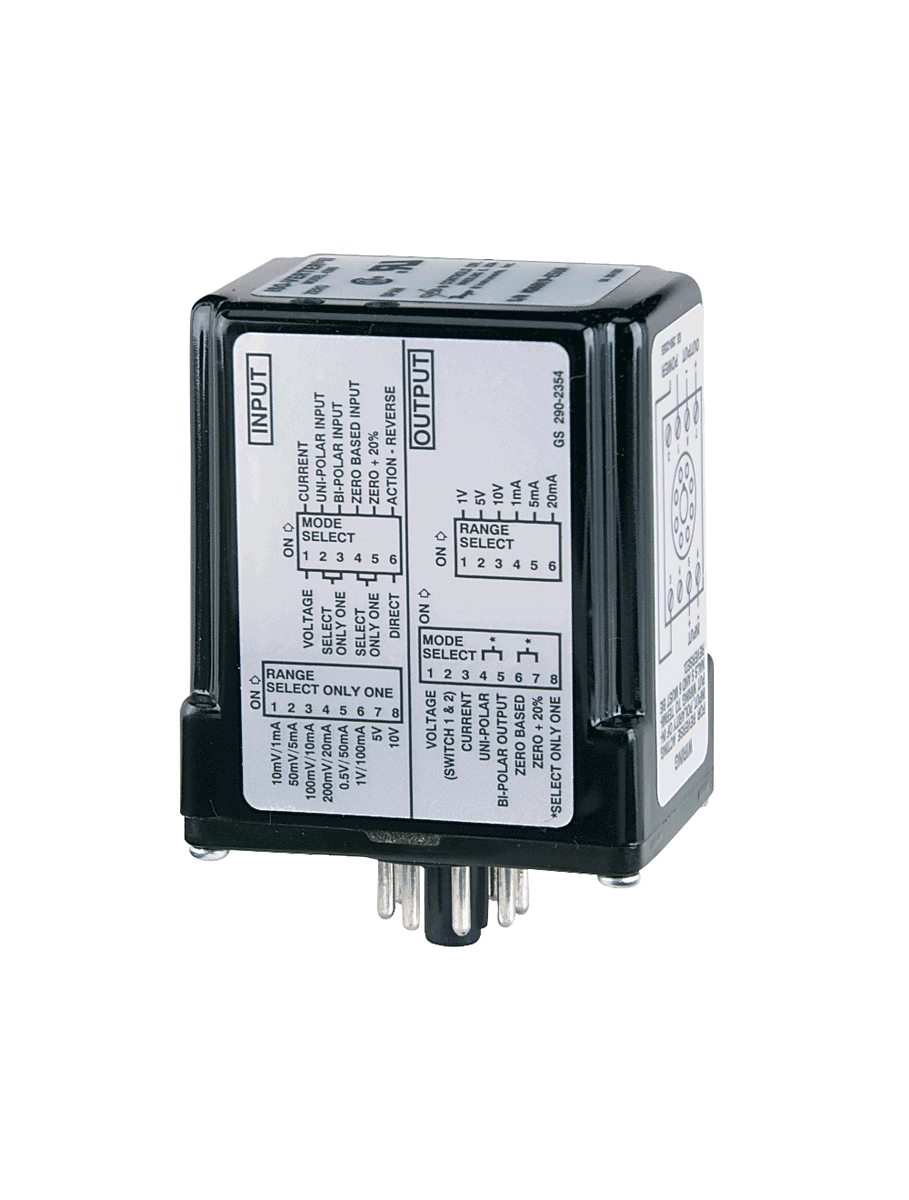

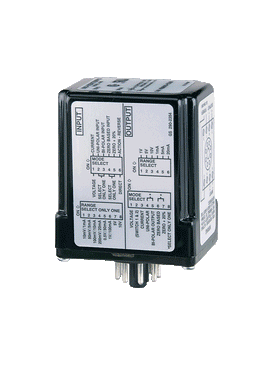

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 4380
Documents and manuals
Dwyer 4380 Documents
Overview
Details for 4380
See catalog product page for full listing
Process signal converter/isolator
Model 4380 Process Signal Converter/Isolator
Converts Process Signal, Isolates to 1500 V RMS
The Iso Verter® II Isolator/Converter protects electronic circuits by completely isolating the input and output signals from each other and from ground. Both input and output ranges are fully field selectable with easy to adjust switches. With bipolar input selection and zero suppression, nearly any standard input/output range combination is possible. Zero and span adjustments are easily accessible on top of housing. Units plug into universally available octal sockets for quick easy installation. Industry standard "pin-out" wiring configuration allows direct replacement of most competitive models. Order optional 481-0159 socket for new installations.
Specifications
- Power Supply
- 85-265 VDC/VAC; 50-400 Hz.
- Case Size
- (Including socket pins) 2-3/8" W x 3-7/16" H x 1-3/4" D (60.3 x 87.3 x 44.4 mm); Height is 2-7/8" (73 mm) above socket.
- Mounting
- Industry standard octal socket.
- Agency Approvals
- cUR; UR.
