3ZV1243 | Three-way zone valve | 1" BSPT | Cv of 8.02 | 220/230 VAC | close-off pressure 14.5 psi (1.0 bar). | Dwyer

Three-way zone valve, 1" BSPT, Cv of 8.02, 220/230 VAC, close-off pressure 14.5 psi (1.0 bar).

Brand: DwyerSKU: 3ZV1243

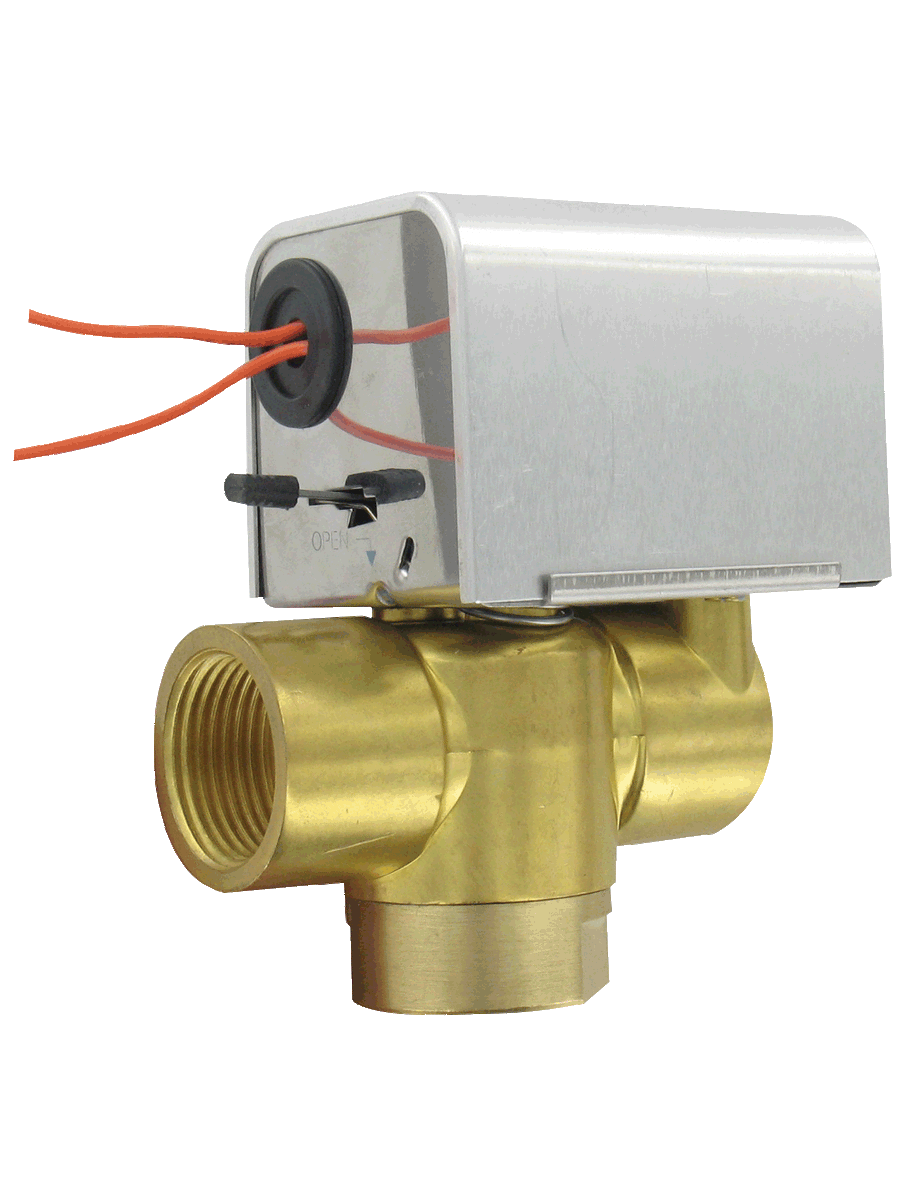

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3ZV1243

Jump to: Overview & Specifications Reviews

Overview Details for 3ZV1243

See catalog product page for full listing

Three-way zone valve | 1" BSPT | Cv of 8.02 | 220/230 VAC | close-off pressure 14.5 psi (1.0 bar).

Series 3ZV1 Three-Way Zone Valve

Economical, Manual Override

3ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. The 3ZV1 is electrically driven to open and spring to close. Units are available in 1/2", 3/4", and 1"; sizes with 24 or 120 VAC power supply. Easy to install these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: 3ZV1 Three-Way Zone Valve
Category/Type: Valves
Type: Valves
Valve Type: Zone
Series: 3ZV1 Three-Way Zone Valve
Service: Compatible fluids.
Body: 3-way.
Line Size: 1/2" to 1".
End Connections: Female NPT (optional BSP; sweat connections).
Pressure Limits: Maximum: 300 psi (20.7 bar); Close-off: see chart on Catalog page.
Temperature Limits: Ambient: 32 to 104°F (0 to 40°C); Process: 32 to 201°F (0 to 94°C).
Wetted Materials: Brass; stainless steel; NBR.
Flow Characteristic: Quick opening.
Power Requirements: 120 VAC or 24 VAC; ±10%; 50/60 Hz; (optional 220 VAC).
Power Consumption: 6.5 W.
Input: On/off.
Electrical Connection: 22 AWG; 5" (127 mm) long.
Cycle Time: Opening time: 11 seconds; Closing time: 5 seconds.
Enclosure Rating: General purpose.
Housing Material: Aluminum.
