3ZV1122 | Three-way zone valve | 1/2" sweat | Cv of 3.78 | 120 VAC | close-off pressure 22 psi (1.5 bar). | Dwyer
Three-way zone valve, 1/2" sweat, Cv of 3.78, 120 VAC, close-off pressure 22 psi (1.5 bar).

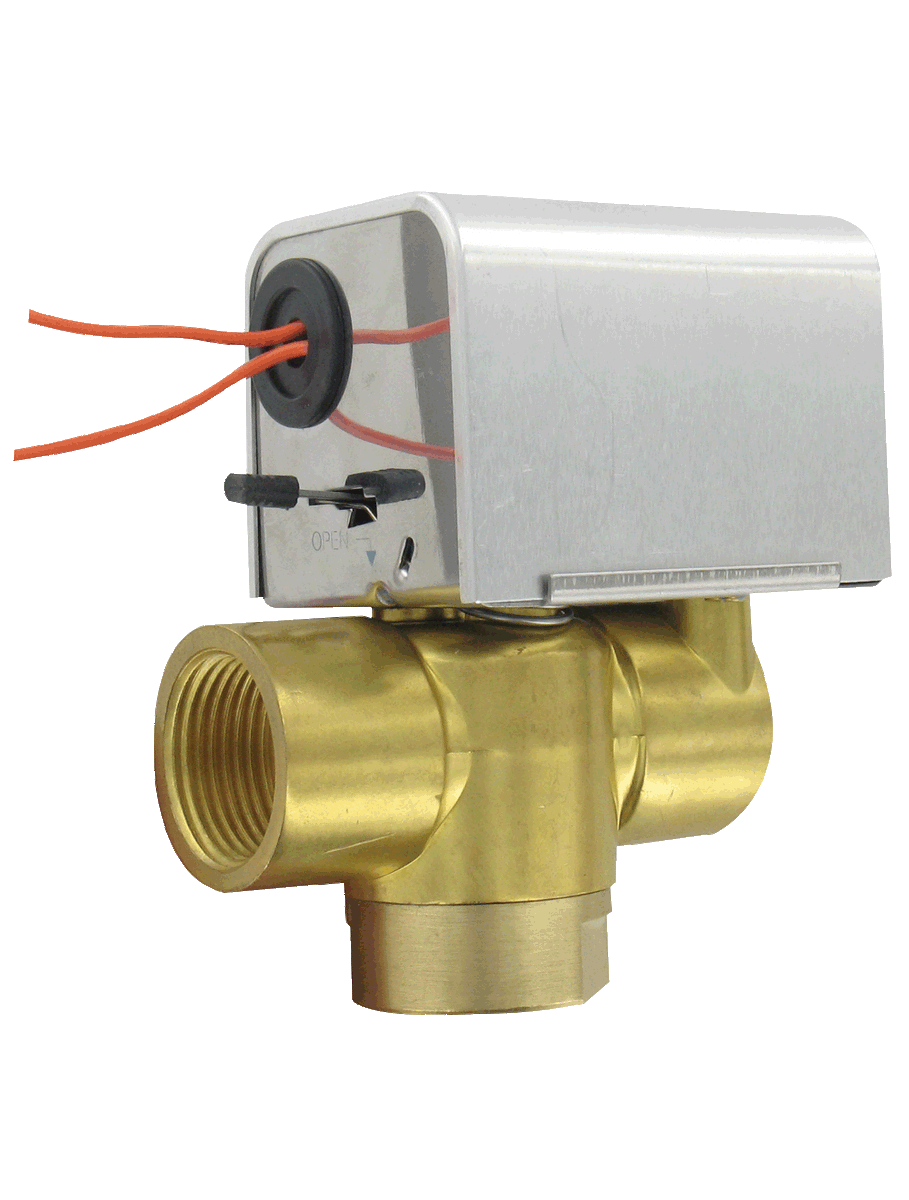

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3ZV1122
Documents and manuals
Dwyer 3ZV1122 Documents
Overview
Details for 3ZV1122
See catalog product page for full listing
Three-way zone valve | 1/2" sweat | Cv of 3.78 | 120 VAC | close-off pressure 22 psi (1.5 bar).
Series 3ZV1 Three-Way Zone Valve
Economical, Manual Override
3ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. The 3ZV1 is electrically driven to open and spring to close. Units are available in 1/2", 3/4", and 1"; sizes with 24 or 120 VAC power supply. Easy to install these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.
California Residents: Click Here for Proposition 65 WARNING.
Specifications
- Series
- 3ZV1 Three-Way Zone Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Zone
- Series
- 3ZV1 Three-Way Zone Valve
- Service
- Compatible fluids.
- Body
- 3-way.
- Line Size
- 1/2" to 1".
- End Connections
- Female NPT (optional BSP; sweat connections).
- Pressure Limits
- Maximum: 300 psi (20.7 bar); Close-off: see chart on Catalog page.
- Temperature Limits
- Ambient: 32 to 104°F (0 to 40°C); Process: 32 to 201°F (0 to 94°C).
- Wetted Materials
- Brass; stainless steel; NBR.
- Flow Characteristic
- Quick opening.
- Power Requirements
- 120 VAC or 24 VAC; ±10%; 50/60 Hz; (optional 220 VAC).
- Power Consumption
- 6.5 W.
- Input
- On/off.
- Electrical Connection
- 22 AWG; 5" (127 mm) long.
- Cycle Time
- Opening time: 11 seconds; Closing time: 5 seconds.
- Enclosure Rating
- General purpose.
- Housing Material
- Aluminum.
