3MSV-SD220 | Compact 3-way ball valve | 316SS | 1/4" tube | 3.18 mm orifice. | Dwyer
Compact 3-way ball valve, 316SS, 1/4" tube, 3.18 mm orifice.

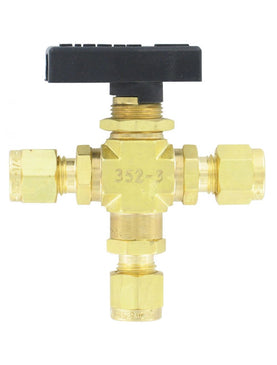

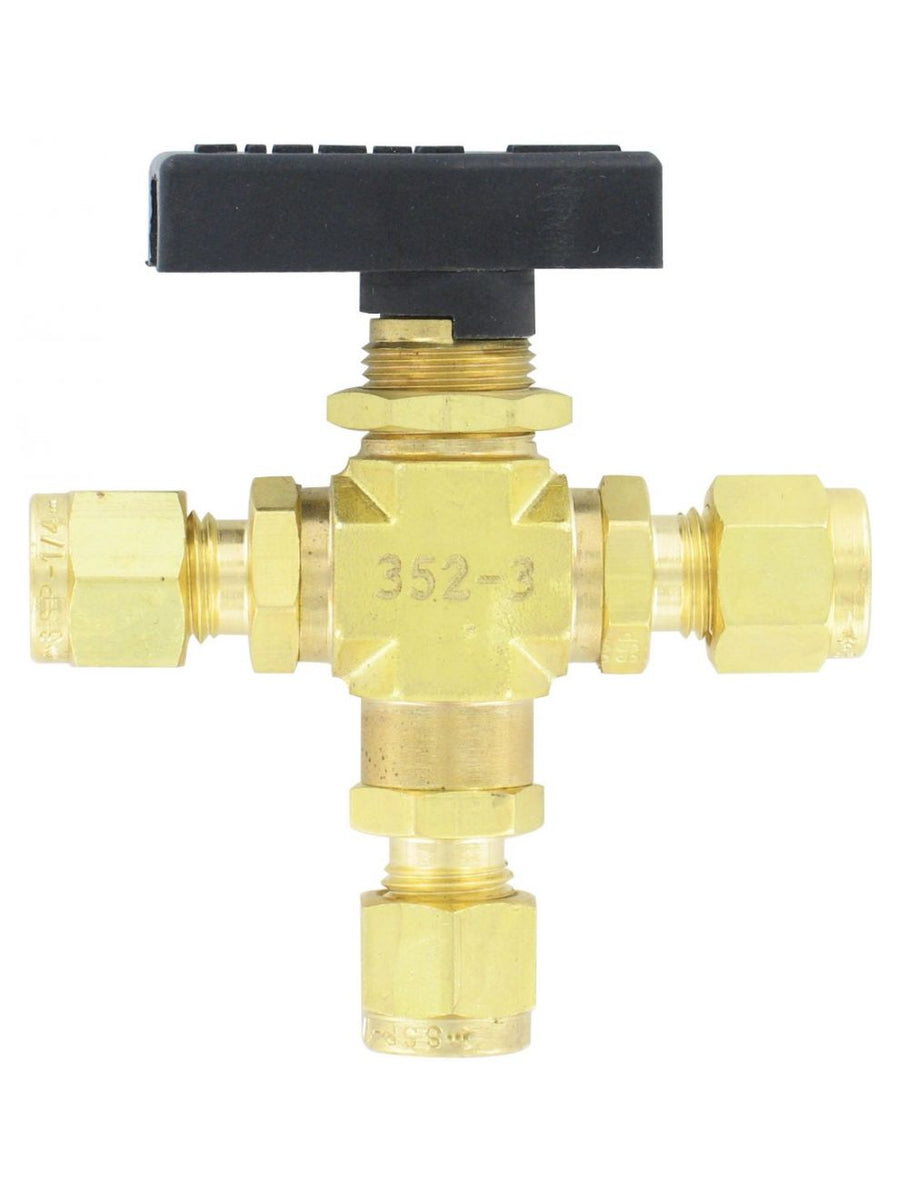

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3MSV-SD220
Documents and manuals
Dwyer 3MSV-SD220 Documents
Overview
Details for 3MSV-SD220
See catalog product page for full listing
Compact 3-way ball valve | 316SS | 1/4" tube | 3.18 mm orifice.
Series 3MSV Compact 3-Way Ball Valve
3-Way Blow-Out-Proof Ball & Stem
The Series 3MSV Compact 3-Way Ball Valves are the perfect choice for directional control of fluid in instrumentation and process systems. The micro finished ball and PTFE seats ensure quality seal and easy operation. The straight through flow path design allows for minimal pressure drop. The valve body comes in either brass or 316 stainless steel, offering a variety of options. Blow-out-proof ball and stem provides extra durability and safety in the event of over pressure.
Specifications
- Series
- 3MSV Compact 3-Way Ball Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Ball
- Series
- 3MSV Compact 3-Way Ball Valve
- Service
- Gases and liquids compatible with wetted materials.
- Wetted Materials
- Body; Connector: 316 SS or brass; Stem; Ball: 316 SS; Stem O-ring; Connector O-ring; Back-up Rings: Fluoroelastomer; Ball Seats: PTFE.
- Pressure Limits
- 1500 psig (103 bar).
- Temperature Limit
- -40 to 350°F (-40 to 176°C).
- Connections
- Female NPT; fractional tube fitting.
