3MSV-SD110 | Compact 3-way ball valve | 316SS | 1/8" tube | 2.36 mm orifice. | Dwyer

Compact 3-way ball valve, 316SS, 1/8" tube, 2.36 mm orifice.

Brand: DwyerSKU: 3MSV-SD110

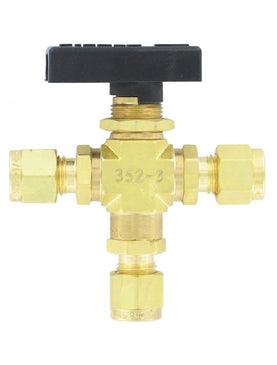

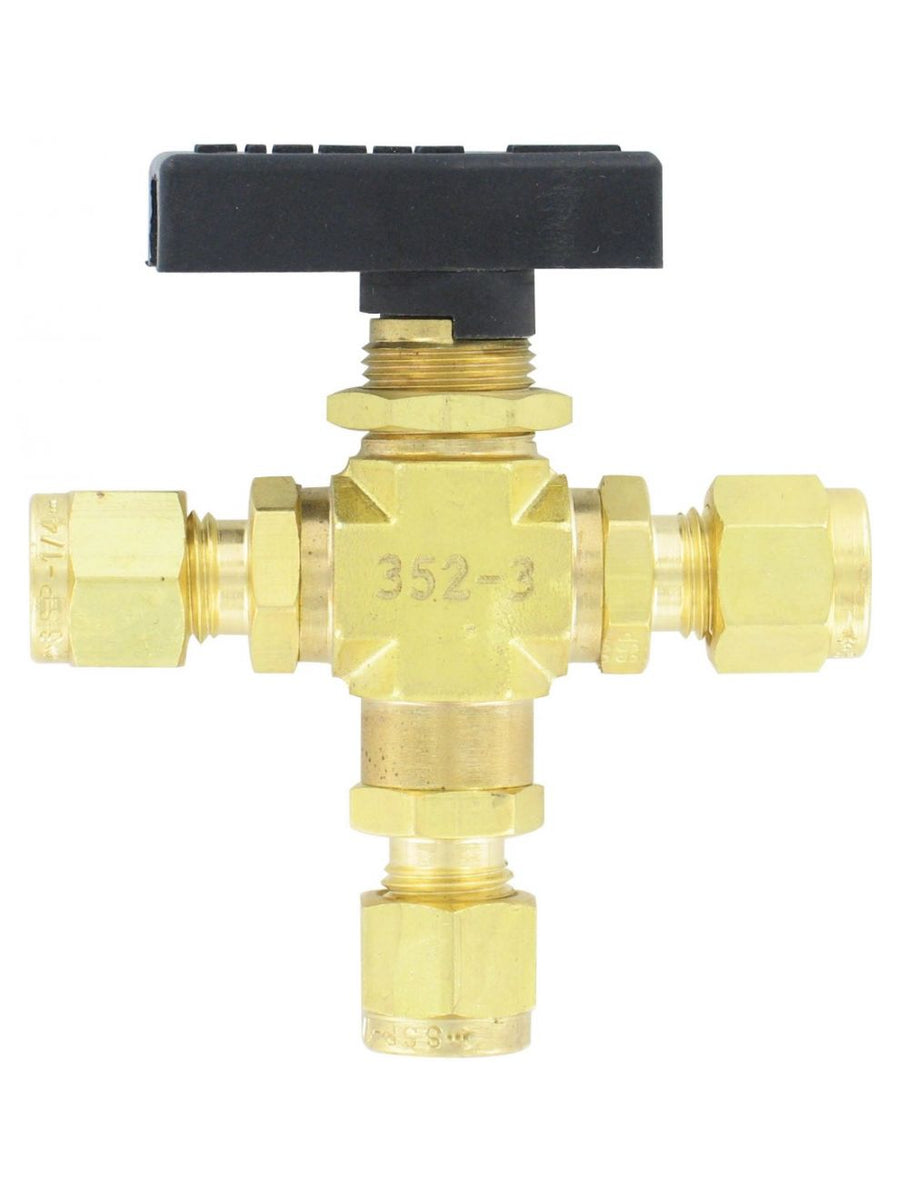

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3MSV-SD110

Jump to: Overview & Specifications Reviews

Overview Details for 3MSV-SD110

See catalog product page for full listing

Compact 3-way ball valve | 316SS | 1/8" tube | 2.36 mm orifice.

Series 3MSV Compact 3-Way Ball Valve

3-Way Blow-Out-Proof Ball & Stem

The Series 3MSV Compact 3-Way Ball Valves are the perfect choice for directional control of fluid in instrumentation and process systems. The micro finished ball and PTFE seats ensure quality seal and easy operation. The straight through flow path design allows for minimal pressure drop. The valve body comes in either brass or 316 stainless steel, offering a variety of options. Blow-out-proof ball and stem provides extra durability and safety in the event of over pressure.

Specifications

Series: 3MSV Compact 3-Way Ball Valve
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: 3MSV Compact 3-Way Ball Valve
Service: Gases and liquids compatible with wetted materials.
Wetted Materials: Body; Connector: 316 SS or brass; Stem; Ball: 316 SS; Stem O-ring; Connector O-ring; Back-up Rings: Fluoroelastomer; Ball Seats: PTFE.
Pressure Limits: 1500 psig (103 bar).
Temperature Limit: -40 to 350°F (-40 to 176°C).
Connections: Female NPT; fractional tube fitting.
