3HBAV0424 | Three-Way detachable electric ball valve | Cv value 11.2 | 1" npt | 24 vac | modulating | Dwyer

Three-Way detachable electric ball valve, Cv value 11.2, 1" npt, 24 vac, modulating

Brand: DwyerSKU: 3HBAV0424

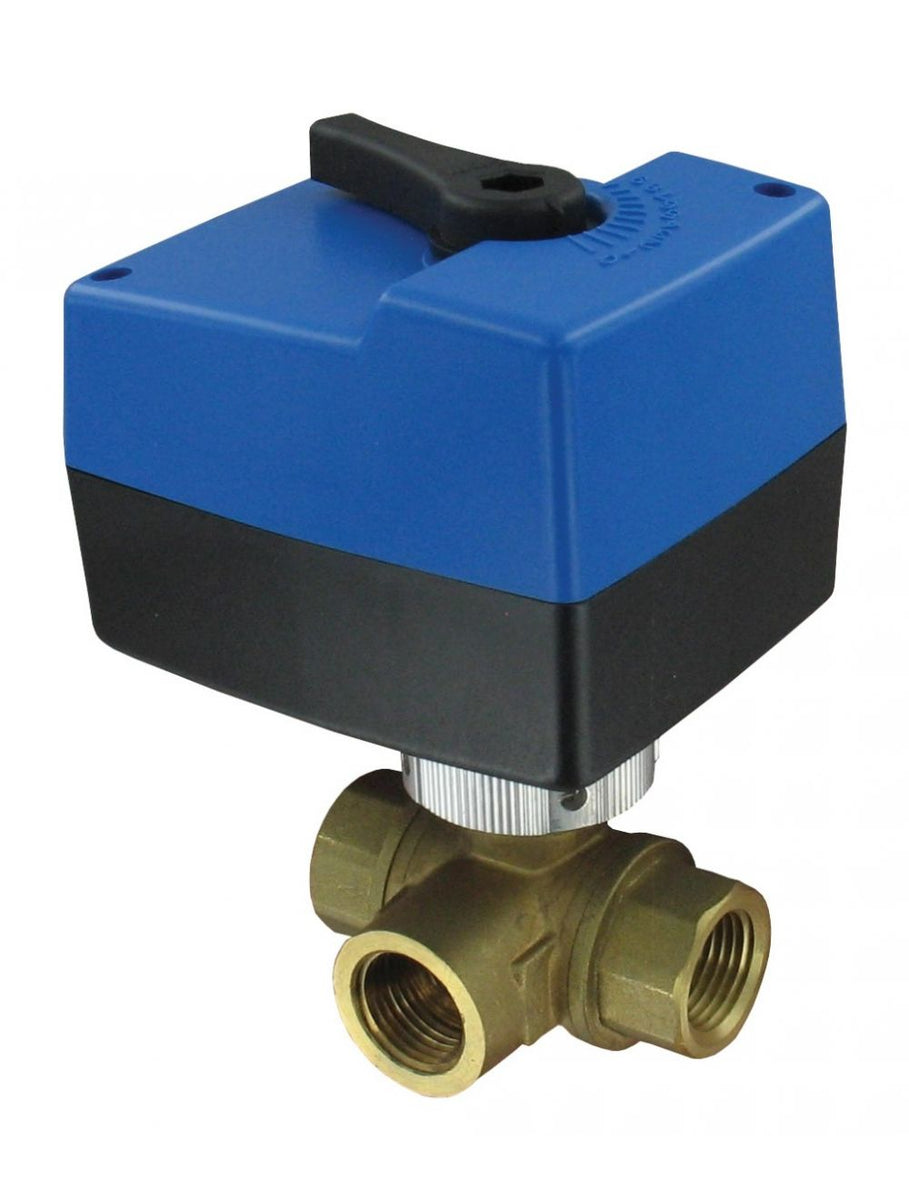

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3HBAV0424

Jump to: Overview & Specifications Reviews

Overview Details for 3HBAV0424

See catalog product page for full listing

Three-Way detachable electric ball valve | Cv value 11.2 | 1" npt | 24 vac | modulating

Series 3HBAV Three-Way Detachable Electric Ball Valve

Floating or Modulating, Position Indicator

The Series 3HBAV is an electrical ball valve ideal for flow control in hot andcold water HVAC systems. These valves are typically used in conjunction withair conditioning systems, heating systems, water treatment and productionindustries. The 3HBAV is electrically driven open and/or closed via abidirectional AC motor. The electrical valve offers a detachable actuator withposition switches and indicator. The 3HBAV is available with modulating orfloating actuators.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air Conditioning Systems
Heating Systems
Water Treatment
Production Industries

Manual override
Detachable actuator
High Cv values

Specifications

Series: 3HBAV Three-Way Detachable Electric Ball Valve
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: 3HBAV Three-Way Detachable Electric Ball Valve
Service: Compatible fluids.
Body: 3-way; NC.
Line Size: 1/2 to 2" NPT.
End Connections: Female NPT.
Pressure Limits: Max: 375 psi (25 bar); Close off: 87 psi (6 bar).
Temperature Limit: Ambient: -22 to 158°F (-30 to 70°C);Process: 23 to 122°F (-5 to 50°C).
Wetted Materials: Brass; SS; NBR; PTFE.
Input: Floating: 3-wire; Modulating: 4 to 20 mA (24 VAC power only).
Power Requirements: 120 VAC or 24 VAC; 50/60 Hz; single phase.
Power Consumption: Floating: 3 to 5 VA; Modulating: 4 VA.
Electrical Connection: 18 AWG.
Cycle Time (per 90°): 1/2 to 1": 45 s.; 1-1/4 to 2": 50 s.
Enclosure Rating: NEMA 1 (IP10).
Housing Material: Plastic; nylon; and polyoxymethylene.
Weight: See table on catalog page.
