32A020 | Temperature controller/process | no alarm | (1) 5 VDC output. | Dwyer

Temperature controller/process, no alarm, (1) 5 VDC output.

Brand: DwyerSKU: 32A020

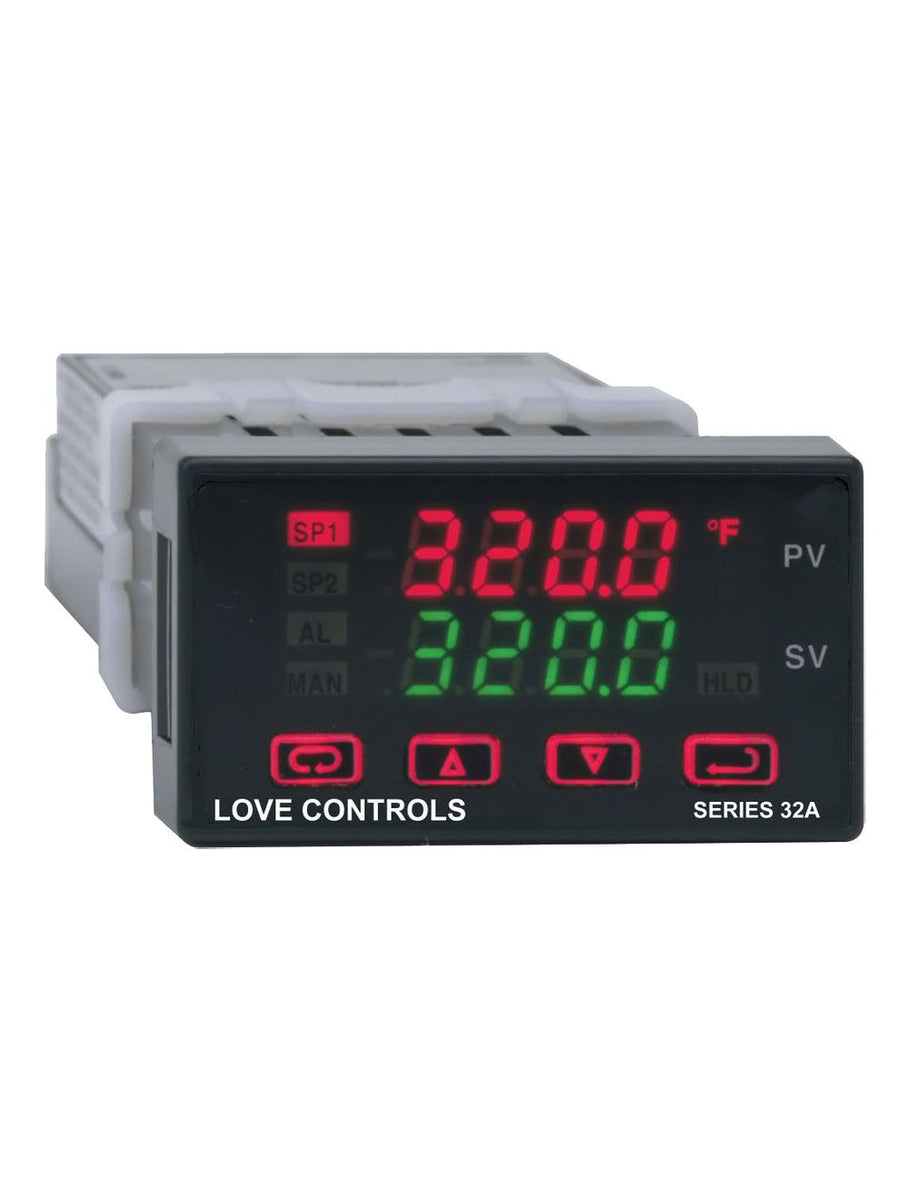

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 32A020

Jump to: Overview & Specifications Reviews

Overview Details for 32A020

See catalog product page for full listing

Temperature controller/process | no alarm | (1) 5 VDC output.

Series 32A Temperature/Process Controller

1/32 DIN, Universal Input, Self-Tune, Fuzzy Logic

The 32A Series Temperature/Process Controllers set a new standard in 1/32 DIN power, flexibility and value. This group of controls offers the highest level of features in the most compact industry standard size. Ease of use is assured with the world's first dual display 1/32 DIN temperature/process controllers.

The Series 32A offers universal input (10 thermocouple types, 4 RTD types, voltage and current), single or dual set point, alarm (optional), Fuzzy Logic, Self-Tune, Peak/Valley indication, Percent Output indication and Heater Break protection. Auto/Manual capability and 16 Segment Ramp and Soak with adjustable time base are also offered. Process protection features include open sensor protection, shorted sensor protection, input rate of change protection and loop break protection.

Options for the 32A include Process Output Retransmission (voltage or current), Remote Analog Set Point (voltage, current resistance), RS-485 Serial Communication and 2-Stage Set Point.

Large Dual Display
Self-Tune
Fuzzy Logic
Universal Input
Loop Break Protection
Peak/Valley Indication
Percent Output Indication
Illuminated Keypad
16 Segment Ramp/Soak Function
Auto/Manual Station Function
Four Password Protected Security Level

Specifications

Series: 32A Temperature/Process Controller
Category/Type: Process Control
Type: Process Controllers
Series: 32A Temperature/Process Controller
Selectable Inputs: Thermocouple; RTD; DC Voltage or DC Current selectable.
Display: Two 4-digit; 7 segment; 0.25" high (6.35 mm) LEDs.
Accuracy: ±0.25% of span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; nominal; +10 - 15%; 50 to 400 Hz. single phase; 132 to 240 VDC; nominal; +10 - 20%.
Power Consumption: 5 VA maximum.
Operating Temperature: 14 to 131°F (-10 to 55°C).
Memory Backup: Nonvolative memory. No batteries required.
Control Output Ratings: Relay: SPST; 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive; Pilot Duty Rating: 250 VA; 2 A @ 120 VAC or 1 A @ 240 VAC; Switched Voltage (Non-isolated): 5 VDC @ 20 mA; Proportional Current: 0 to 20 mADC scalable into 600 ohms max.
Weight: 4 oz (114 g).
Agency Approvals: CE; UL E83725.
Front Panel Rating: NEMA 4X (IP66).
