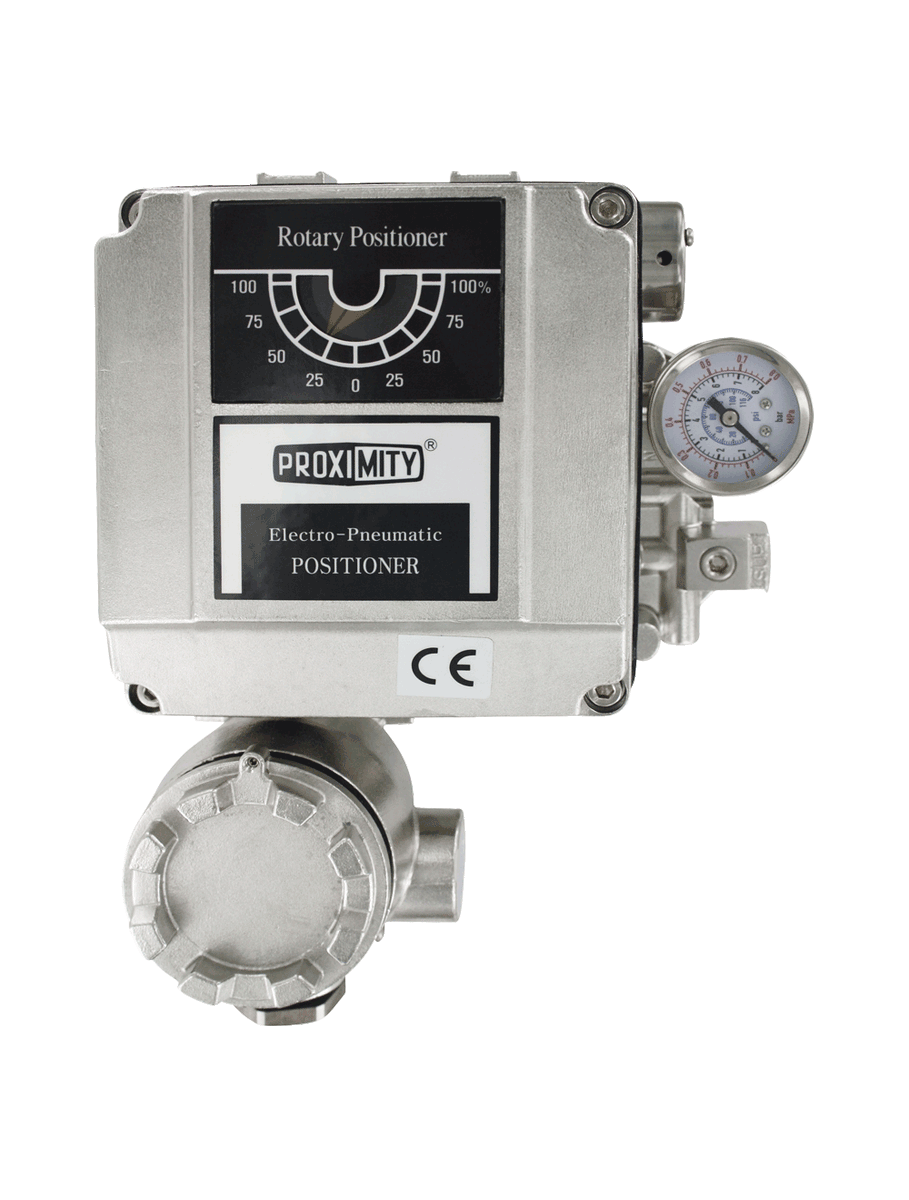

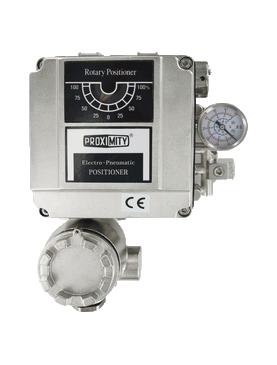

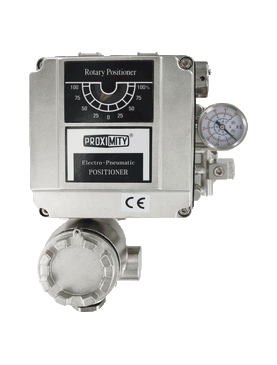

265ER-D5 | Pneumatic and electro-pneumatic positioner | 4-20 mA input | double action | aluminum enclosure | Dwyer

Pneumatic and electro-pneumatic positioner, 4-20 mA input, double action, aluminum enclosure

Brand: DwyerSKU: 265ER-D5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 265ER-D5

Suggested Alternatives

Jump to: Overview & Specifications Reviews

Overview Details for 265ER-D5

See catalog product page for full listing

Pneumatic and electro-pneumatic positioner | 4-20 mA input | double action | aluminum enclosure

Series 265 PRECISOR® II Pneumatic and Electro-Pneumatic Positioner

Rotary Operation, Field Selectable Cam Design, 316 SS Models

Proximity Series 265 PRECISOR® II Pneumatic and Electro-Pneumatic Positioners combine outstanding performance with an extremely low price, making it an exceptional value for industrial applications. Rotary valves with single or double acting pneumatic actuators can be precisely controlled, such as our ball and butterfly valves. The PRECISOR® II positioner proportionally modulates the valve from either an electric 4 to 20 mA or pneumatic 3 to 15 psig input signal, based on the model chosen. Its rugged, durable design makes it ideal for use in harsh environments, while maintaining precise, accurate positioning of the control elements. Includes a bracket for mounting onto actuators with NAMUR standard connections, and features a versatile linear cam for direct action, reverse action, or split ranges.

Product Applications

Rotary valves with single or double acting pneumatic actuators

Field selectable cam for direct or reverse acting.
User selectable for single or double action
Highly visible indicator for local indication
IP66 enclosure rating

Specifications

Series: 265 PRECISOR® II Pneumatic and Electro-Pneumatic Positioner
Category/Type: Valves
Type: Positioners
Series: 265 PRECISOR® II Pneumatic and Electro-Pneumatic Positioner
Input Signal: Pneumatic: 3 to 15 psig (0.2 to 1 bar); Electro-Pneumatic: 4-20 mA DC.
Input Impedance: (265ER only): 250 ±15 Ω.
Enclosure Material: Aluminum diecasting or 316SS.
Air Supply: 20 to 101 psig (1.4 to 7.0 bar).
Air Supply Connection: 1/4" NPT.
Gage Connection: 1/8" NPT.
Electrical Connection: Screw terminal.
Conduit Connection: 1/2" NPT (265ER only).
Linearity: ±2% of full scale.
Hysteresis: 1% of full scale.
Sensitivity: ±0.5% of full scale.
Repeatability: ±0.5% of full scale.
Air Consumption: 0.10 scfm (3 LPM) at 20 psig (1.4 bar) supply.
Flow Capacity: 28 scfm (80 LPM) at 20 psig (1.4 bar) supply.
Stroke: 0 to 90°.
Enclosure Rating: IP66.
Temperature Limits: Aluminum: -4 to 158°F (-20 to 70°C).
Weight: 265NR: 3.1 lb (1.7 kg); 265ER: 6.2 lb (2.8 kg).
Agency Approvals: CE (265ER only).
