25115 | Temperature controller | thermocouple input | 4-20 mA output | with alarm. | Dwyer

Temperature controller, thermocouple input, 4-20 mA output, with alarm.

Brand: DwyerSKU: 25115

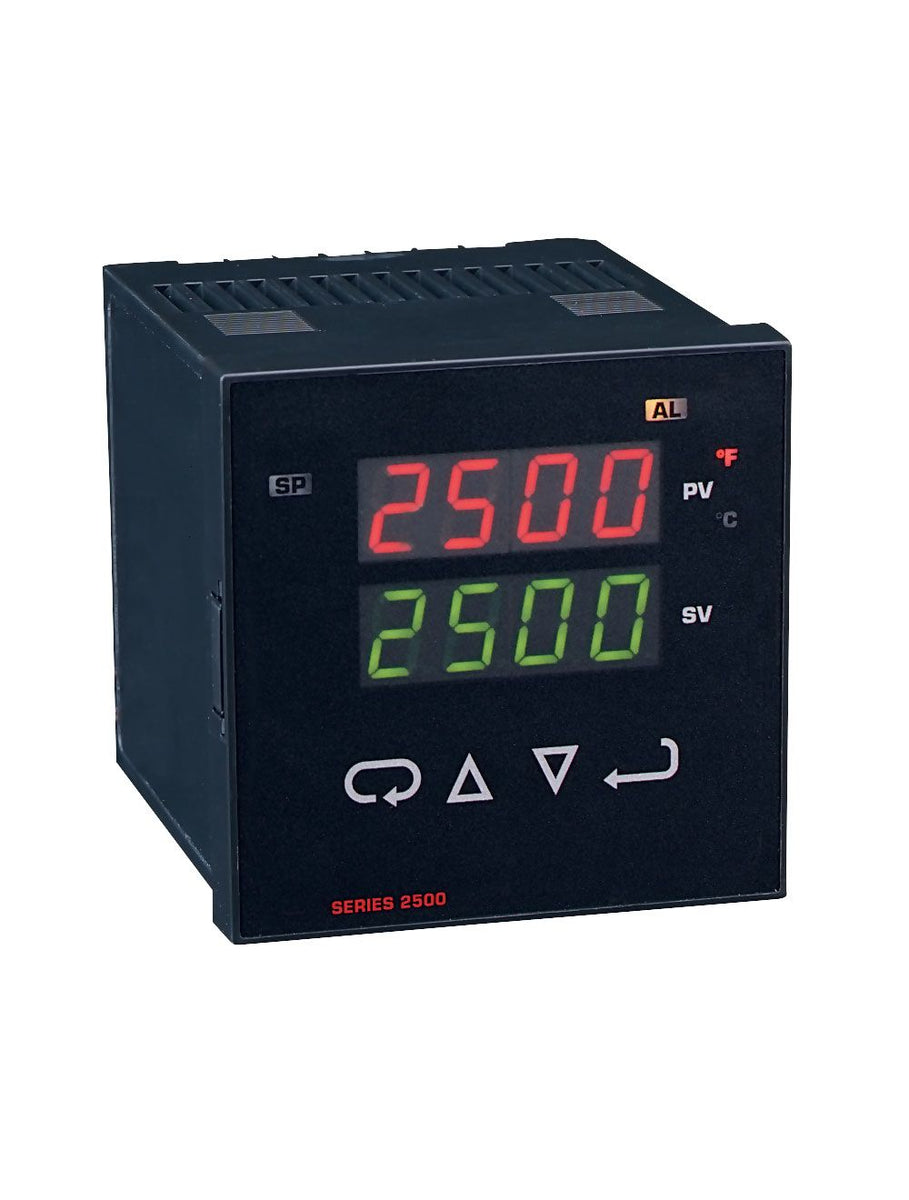

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 25115

Jump to: Overview & Specifications Reviews

Overview Details for 25115

See catalog product page for full listing

Temperature controller | thermocouple input | 4-20 mA output | with alarm.

Series 2500 Temperature/Controller

1/4 DIN Fully Programmable, Self-Tune PID

The Series 2500 Temperature Controller provides an impressive array of features in an economical 1/4 DIN package. Features include on-off, time proportioning, proportional, PI, PD, or full PID control, programmable from the front panel, or use Self-Tune PID. Input types are selectable from a variety of thermocouple types (J, K, T, E, N or L) or DIN, NIST or Ni RTD ’s. Outputs include solid state relay, mechanical relay, 5 VDC (ideal for driving an external SSR) or isolated 4-20 mA proportional current. Programmable alarm can act as high or low or high/low guard band alarm.

A water and corrosion resistant front panel (NEMA 4X; IP65), input fault timer, digital input filter, Self-Tune ramp to setpoint, four password protected security levels and °F or °C display selection are all standard. Entire electronics package is field replaceable without wiring changes thanks to removable front panel.

Specifications

Series: 2500 Temperature/Controller
Category/Type: Process Control
Type: Process Controllers
Series: 2500 Temperature/Controller
Inputs: Inputs: Thermocouple or RTD.
Input Impedance: Thermocouple = 3 megohms minimum; RTD current = 200 µA maximum.
Display: Two 4-digit; 7 segment; 0.56" high LED.
Resolution: 1 degree or 0.1 degree.
Accuracy: ±0.25% of span; ±1 degree.
Supply Voltage: 100-240 VAC nominal; ±10%; 50-400 Hz; single phase; 132-240 VDC nominal; ±10%.
Power Consumption: 5 VA maximum.
Operating Temperature: 14 to 131°F (-10 to 55°C).
Memory Backup: Non-volatile memory. No batteries required.
Control Action: Selectable for reverse (usually heating) or direct (usually cooling).
Ramp: One ramp time adjustable from 0-100 hours.
Isolation: Relay and SSR outputs; 1500 VAC. 0-20 mA output; 500 VAC. 5 VDC output is not isolated.
Weight: 13 oz (369 g).
Front Panel Rating: NEMA 4X (IP65).
