25111 | Temperature controller | thermocouple input | SSR output | with alarm. | Dwyer
Temperature controller, thermocouple input, SSR output, with alarm.
Documents and manuals
Dwyer 25111 Documents
Overview
Details for 25111
Temperature controller | thermocouple input | SSR output | with alarm.

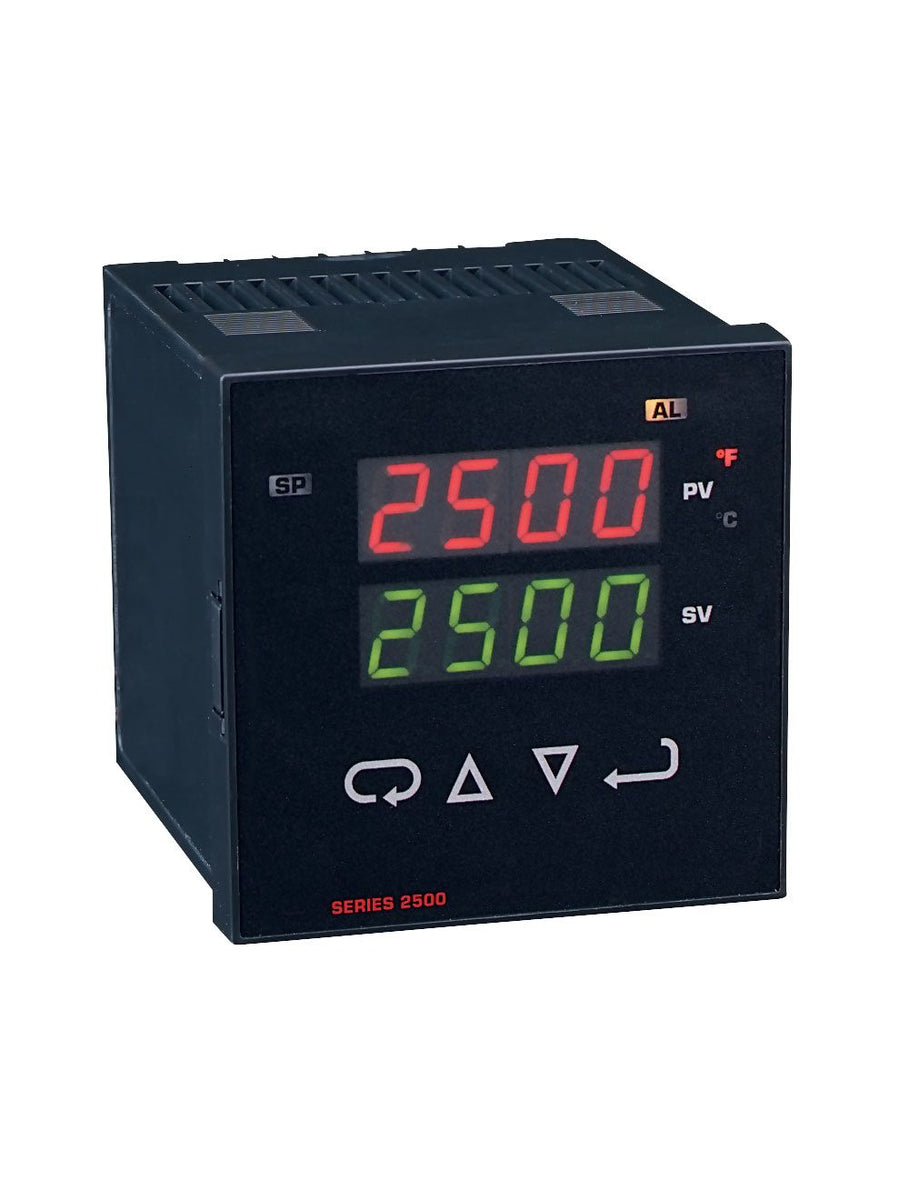

Series 2500 Temperature/Controller
The Series 2500 Temperature Controller provides an impressive array of features in an economical 1/4 DIN package. Features include on-off, time proportioning, proportional, PI, PD, or full PID control, programmable from the front panel, or use Self-Tune PID. Input types are selectable from a variety of thermocouple types (J, K, T, E, N or L) or DIN, NIST or Ni RTD ’s. Outputs include solid state relay, mechanical relay, 5 VDC (ideal for driving an external SSR) or isolated 4-20 mA proportional current. Programmable alarm can act as high or low or high/low guard band alarm.
A water and corrosion resistant front panel (NEMA 4X; IP65), input fault timer, digital input filter, Self-Tune ramp to setpoint, four password protected security levels and °F or °C display selection are all standard. Entire electronics package is field replaceable without wiring changes thanks to removable front panel.
Specifications
- Series
- 2500 Temperature/Controller
- Category/Type
- Process Control
- Type
- Process Controllers
- Series
- 2500 Temperature/Controller
- Inputs
- Inputs: Thermocouple or RTD.
- Input Impedance
- Thermocouple = 3 megohms minimum; RTD current = 200 µA maximum.
- Display
- Two 4-digit; 7 segment; 0.56" high LED.
- Resolution
- 1 degree or 0.1 degree.
- Accuracy
- ±0.25% of span; ±1 degree.
- Supply Voltage
- 100-240 VAC nominal; ±10%; 50-400 Hz; single phase; 132-240 VDC nominal; ±10%.
- Power Consumption
- 5 VA maximum.
- Operating Temperature
- 14 to 131°F (-10 to 55°C).
- Memory Backup
- Non-volatile memory. No batteries required.
- Control Action
- Selectable for reverse (usually heating) or direct (usually cooling).
- Ramp
- One ramp time adjustable from 0-100 hours.
- Isolation
- Relay and SSR outputs; 1500 VAC. 0-20 mA output; 500 VAC. 5 VDC output is not isolated.
- Weight
- 13 oz (369 g).
- Front Panel Rating
- NEMA 4X (IP65).
