2004VA32-231-QS | 1-1/2" control valve | Cv of 32.10 | bronze body | USP set at 125 psig (8.6 bar) | USP adjustable range 104-137 psig (7.2-9.5 bar). | Dwyer

1-1/2" control valve, Cv of 32.10, bronze body, USP set at 125 psig (8.6 bar), USP adjustable range 104-137 psig (7.2-9.5 bar).

Brand: DwyerSKU: 2004VA32-231-QS

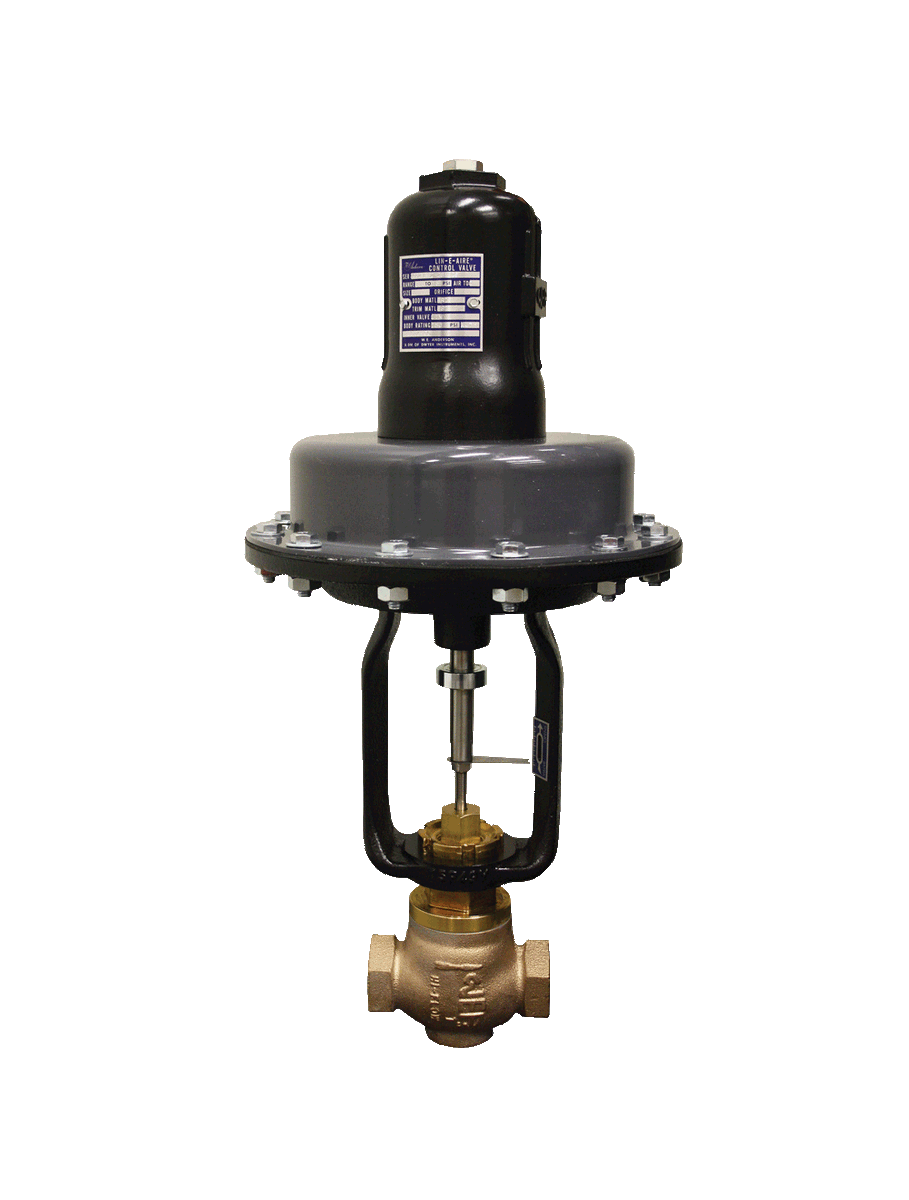

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2004VA32-231-QS

Jump to: Overview & Specifications Reviews

Overview Details for 2004VA32-231-QS

See catalog product page for full listing

1-1/2" control valve | Cv of 32.10 | bronze body | USP set at 125 psig (8.6 bar) | USP adjustable range 104-137 psig (7.2-9.5 bar).

Series 2000VA/3000WA Hi-Flow™ Control Valve

Globe Valves, Ideal for Steam and Water Flow Control, 1/2" to 2-1/2" Sizes, 2-Way or 3-Way

W.E. Anderson Hi-Flow™ control valves are single seated, top or cage guided globe valves - probably the simplest, from construction standpoint, yet most versatile control valve in use. The Hi-Flow™ control valve can fit applications with a smaller size since the valve has a greater flow capacity than most conventional valves of the same size.

Coupled with the high flow capacity, the Hi-Flow™ control valve maintains a wide rangeability of 50:1 to insure precise control. Heavy duty Hi-Flow™ control valves are ruggedly constructed of the highest quality materials, precision machined, and performance tested to assure years of trouble free service. Standard packing consists of PTFE V-rings and wiper to minimize friction without leakage at high operating pressures. Available in brass, iron, 316 SS body, trim is 316 SS with all welded plug construction provide superior durability and corrosion resistance.

Caution: Use of an actuator supply gas other than air can create a hazardous environment because a small amount of gas continuously vents to atmosphere.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Flow control, mixing, or diverting service.
Perfect for steam, water or compatible glycol solutions.

Wide Rangeability of 50:1
Exceptional shut-off and leak rate that meets ANSI/FCI 70-2 Class IV (0.01% of Cv in the closed position)
Selectable fail safe condition with Air-to-Raise or Air-to-Lower actuators and Push-to-Open or Push-to-Close valve bodies
Linear or equal percentage flow characteristics
Low flow options of restricted trim or needle plug
Removeable and replaceable seat ring

Specifications

Series: 2000VA/3000WA Hi-Flow™ Control Valve
Category/Type: Valves
Type: Valves
Valve Type: Globe
Series: 2000VA/3000WA Hi-Flow™ Control Valve
: VALVE BODY
Service: Compatible liquids; gases; and steam.
Line Size: 1/2" to 2.
Body Style: 2-way or 3-way globe.
End Connections: 1/2" to 2" female NPT.
Pressure Limit: Iron or Bronze Body - 250 psi (17.2 bar); 316 SS Body - 300 psi (20.7 bar).
Wetted Materials: Body: iron; bronze; or 316 SS; Trim: 316 SS; Packing: PTFE.
Temperature Limits: 20 to 400°F (-7 to 204.4°C).
: ACTUATOR
Type: Pneumatic spring/diaphragm.
Control Signal: 3 to 15 psi (0.21 to 1.0 bar) standard. Custom ranges available.
Maximum Supply Pressure: 220; 222; and 230: 100 psi (6.89 bar). 221; 223; 231; and 233: 50 psi (3.45 bar).
Air Connection: 1/4" female NPT.
Temperature Limit: 150°F (66°C).
