1996-5 | Gas pressure switch | range 1.4-5.5" w.c. | Dwyer

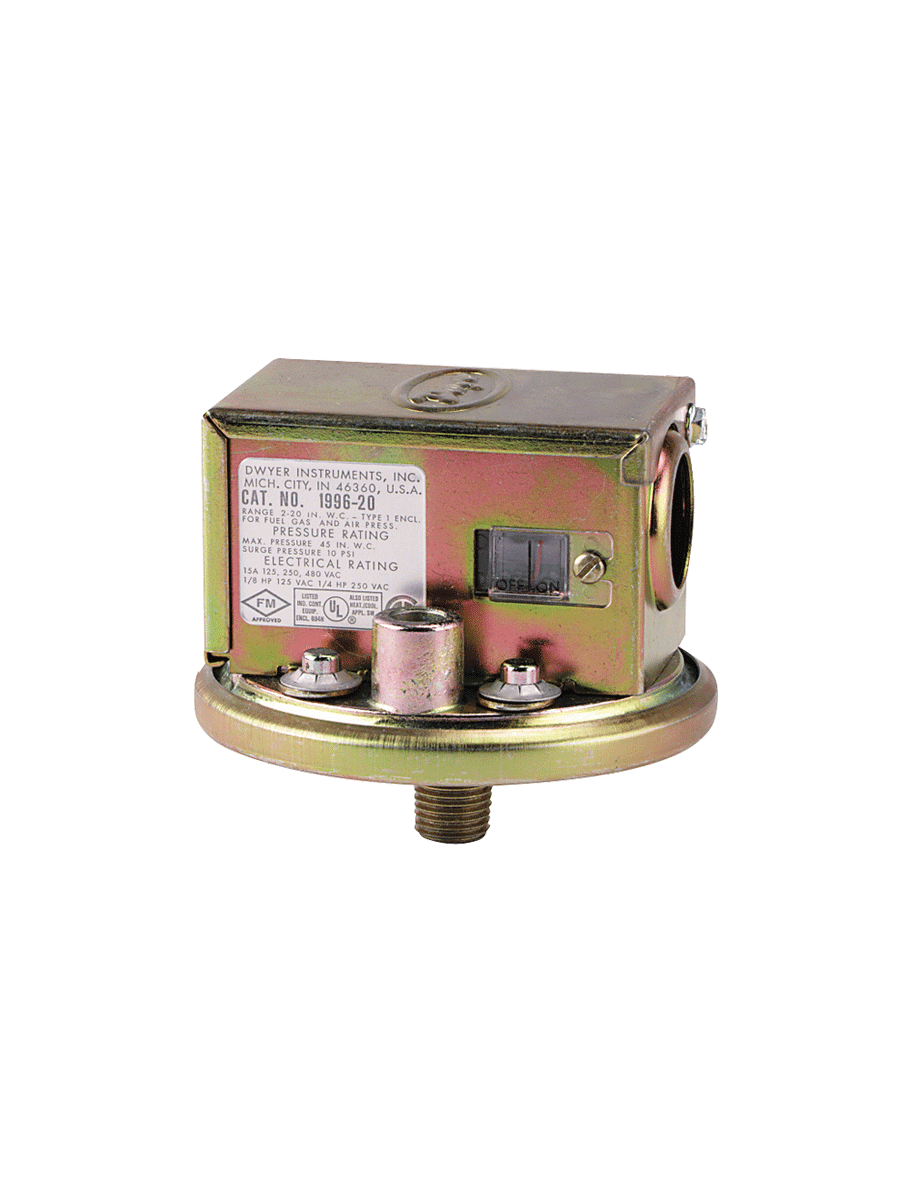

Gas pressure switch, range 1.4-5.5" w.c.

Brand: DwyerSKU: 1996-5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1996-5

Jump to: Overview & Specifications Reviews

Overview Details for 1996-5

See catalog product page for full listing

Gas pressure switch | range 1.4-5.5" w.c.

Series 1996 Gas Pressure Switch

Compact, Low Cost, Range 1.4 to 20" w.c.

Reliable and convenient, the Series 1996 Gas Pressure Switches serve as a compact, low cost switch for gas fired furnaces and equipment. Pressure ranges for both models are ideal for high or low gas pressure interlock. Visible set point and on-off indicators add convenience in servicing. Use either NO or NC contacts on SPDT switch. Bottom connection has both 1/8" female and 1/4" male threads for pipe nipple or coupling. Top connection vents diaphragm chamber to outside or to furnace combustion chamber. Mount switch with diaphragm in a horizontal position and gas pressure connection at bottom. Used with natural, manufactured or LP gas.

For explosion-proof alternatives see Series 1950 or Series 1950G.

Product Applications

Gas furnaces
Natural, manufactured or LP gas applications

Visible set point and on-off indicator simplifies operation and trouble shooting
Compact size and low cost make it ideal for gas fired or gas equipment OEM applications

Specifications

Series: 1996 Gas Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: 1996 Gas Pressure Switch
Service: Air; natural & manufactured gas; LP gas.
Wetted Materials: Consult factory.
Temperature Limits: 32 to 110°F (0 to 43.3°C). -30 to 110°F (-34.4 to 43.3°C) for dry gas or dry air.
Pressure Limits: 45" w.c. (11.2 kPa) continuous; 10 psig (68.95 kPa) surge.
Switch Type: SPDT.
Electrical Rating: 15 A @ 120 to 480 VAC; 60 Hz. Resistive 1/8 HP @ 125 VAC; 1/4 HP @ 250 VAC; 60 Hz.
Electrical Connections: 3 screw type; common; normally open; normally closed.
Process Connections: 1/8" female NPT or 1/4" male NPT.
Vent Connection: 1/8" female NPT.
Mounting Orientation: Diaphragm in horizontal position. Consult factory for other position orientations.
Set Point Adjustment: Screw type with visible indicator; inside conduit enclosure.
Weight: 1 lb 2.3 oz (349 g).
Agency Approvals: CE; CSA; FM; UL.
