Gas pressure switch | range 4-20" w.c.

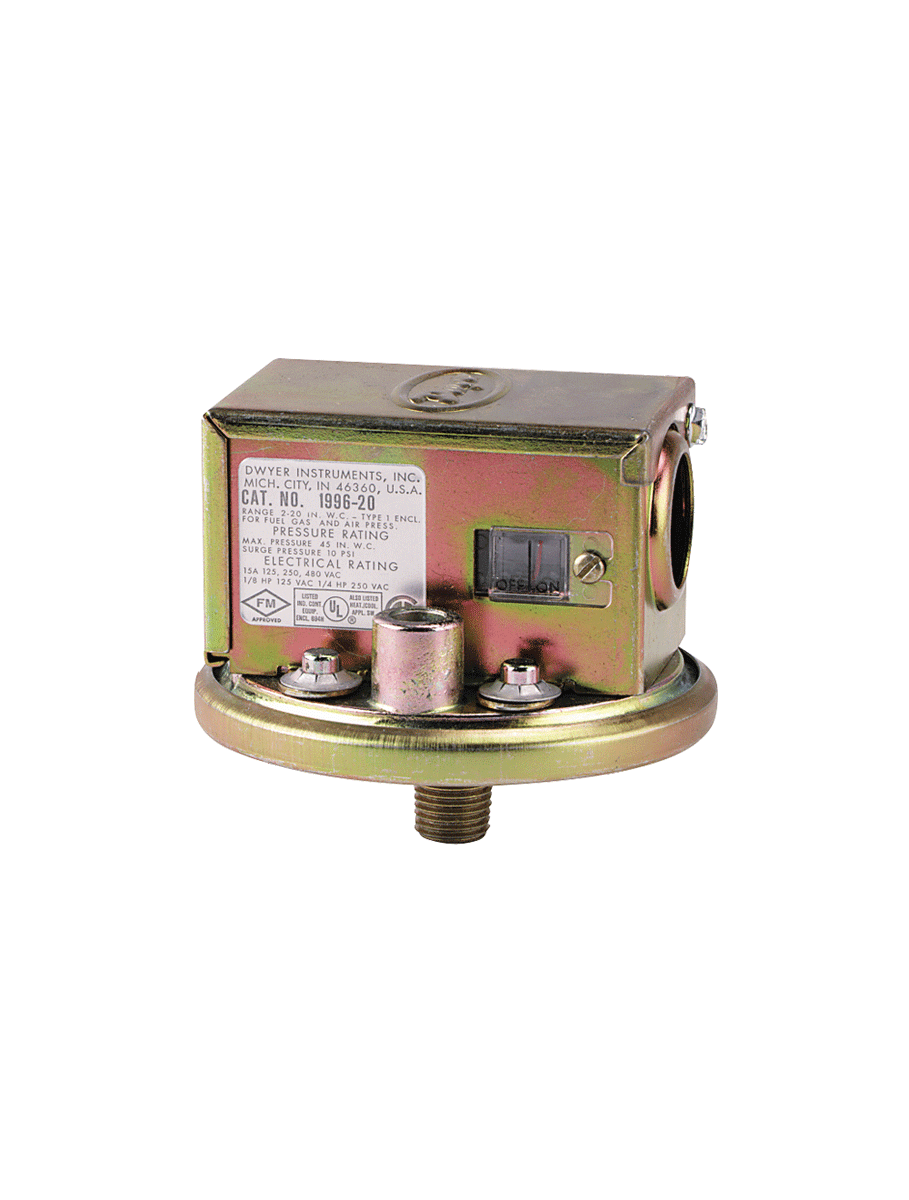

Series 1996 Gas Pressure Switch
Reliable and convenient, the Series 1996 Gas Pressure Switches serve as a compact, low cost switch for gas fired furnaces and equipment. Pressure ranges for both models are ideal for high or low gas pressure interlock. Visible set point and on-off indicators add convenience in servicing. Use either NO or NC contacts on SPDT switch. Bottom connection has both 1/8" female and 1/4" male threads for pipe nipple or coupling. Top connection vents diaphragm chamber to outside or to furnace combustion chamber. Mount switch with diaphragm in a horizontal position and gas pressure connection at bottom. Used with natural, manufactured or LP gas.
For explosion-proof alternatives see Series 1950 or Series 1950G.
Product Applications
- Gas furnaces
- Natural, manufactured or LP gas applications
- Visible set point and on-off indicator simplifies operation and trouble shooting
- Compact size and low cost make it ideal for gas fired or gas equipment OEM applications
Specifications
- Series
- 1996 Gas Pressure Switch
- Category/Type
- Pressure
- Type
- Differential Pressure
- Series
- 1996 Gas Pressure Switch
- Service
- Air; natural & manufactured gas; LP gas.
- Wetted Materials
- Consult factory.
- Temperature Limits
- 32 to 110°F (0 to 43.3°C). -30 to 110°F (-34.4 to 43.3°C) for dry gas or dry air.
- Pressure Limits
- 45" w.c. (11.2 kPa) continuous; 10 psig (68.95 kPa) surge.
- Switch Type
- SPDT.
- Electrical Rating
- 15 A @ 120 to 480 VAC; 60 Hz. Resistive 1/8 HP @ 125 VAC; 1/4 HP @ 250 VAC; 60 Hz.
- Electrical Connections
- 3 screw type; common; normally open; normally closed.
- Process Connections
- 1/8" female NPT or 1/4" male NPT.
- Vent Connection
- 1/8" female NPT.
- Mounting Orientation
- Diaphragm in horizontal position. Consult factory for other position orientations.
- Set Point Adjustment
- Screw type with visible indicator; inside conduit enclosure.
- Weight
- 1 lb 2.3 oz (349 g).
- Agency Approvals
- CE; CSA; FM; UL.
