1831-1-RA-S | Differential pressure switch | manual reset | DPDT | activate on increase | silicone diaphragm | range 2.5-9" w.c. | Dwyer

Differential pressure switch, manual reset, DPDT, activate on increase, silicone diaphragm, range 2.5-9" w.c.

Dwyer | 1831-1-RA-S

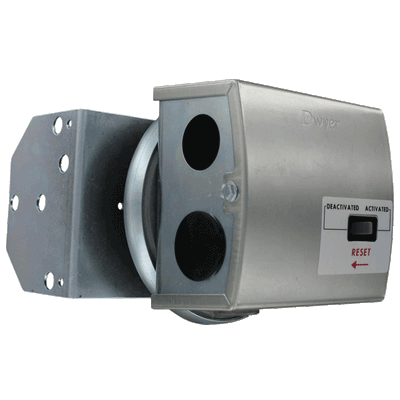

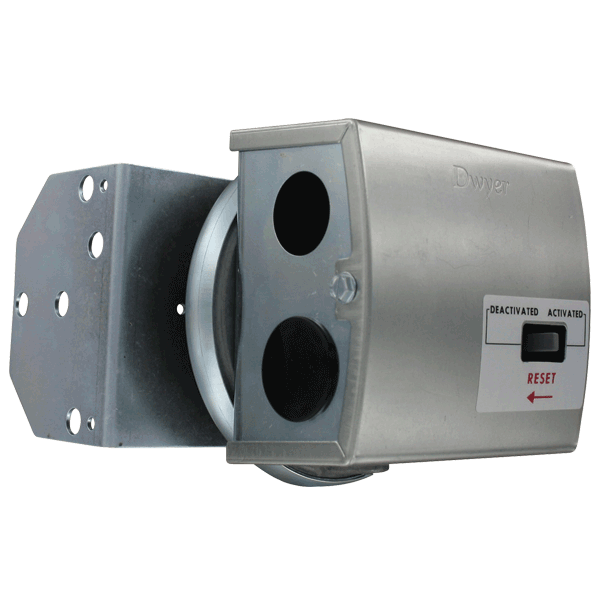

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1831-1-RA-S

Documents and manuals

Overview

Details for 1831-1-RA-S

See catalog product page for full listing

Differential pressure switch | manual reset | DPDT | activate on increase | silicone diaphragm | range 2.5-9" w.c.

Series 1831 DPDT Low Differential Pressure Switches

Manual Reset, No Power Required

One of our most popular differential pressure switches is now available with a DPDT switch and manual reset. The Series 1831 combines small size with 4% set point repeatability. Absolutely no power is required to operate the DPDT switch. Set point adjustment on the switch is easily accessible for modifying the set point.

The Series 1831 DPDT Low Differential Pressure Switches with Manual Reset eliminate common problems associated with typical high duct static cutout installations. Since the 1831 requires absolutely no power to drive its outputs, a separate power loop and its associated additional wiring and conduit is alleviated, reducing material and labor installation costs. Both control contacts of the Series 1831 activate at the same time. The potential of the lead switch shutting down the fan preventing the lag switch from sending an alarming signal to the DDC is no longer a probable system liability. Potential costly maintenance calls are diminished. Unlike typical switches that posses only a single conduit entry for both control loops, the Series 1831 provides two conduit connections simplifying wiring while eliminating additional conduit tees. The Series 1831's specifications and features make it the superior choice for high duct static cutout applications.

Product Applications

    • High duct static cutout applications
    • HVAC





  • No power to operate DPDT switch means no additional wiring or conduit reducesmaterial and installation labor costs
  • Easy access for modifying set point simplifies adjustment
  • Both control contacts activate at the same time eliminating system issues where leadswitch activities prevent the lagging switch from sending a signal

Specifications

Series
1831 DPDT Low Differential Pressure Switches
Service
Air and non-combustible; compatible gases.
Wetted Materials
Consult factory.
Temperature Limits
-30 to 180°F (-34 to 82.2°C).
Pressure Limits
10 psig (68.95 kPa) continuous; 25 psig (172.4 kPa) surge.
Switch Type
2 SPDT.
Actuation Time Difference
1 millisecond maximum actuation delay between contacts.
Repeatability
±4% max.
Electrical Rating
4 A @ 125/250 VAC.
Electrical Connections
Screw type terminal block.
Process Connections
1/8" female NPT.
Mounting Orientation
Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment
Screw type inside mounting spud.
Weight
1 lb 2 oz (522 g).
