166-12-CF | Pocket size Pitot tube | 1/8" dia. | 12" insertion length | 3" tip | with 1/8" male NPT compression fitting. | Dwyer
Pocket size Pitot tube, 1/8" dia., 12" insertion length, 3" tip, with 1/8" male NPT compression fitting.
Documents and manuals
Dwyer 166-12-CF Documents
Overview
Details for 166-12-CF
Pocket size Pitot tube | 1/8" dia. | 12" insertion length | 3" tip | with 1/8" male NPT compression fitting.

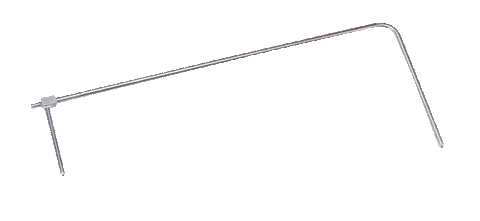

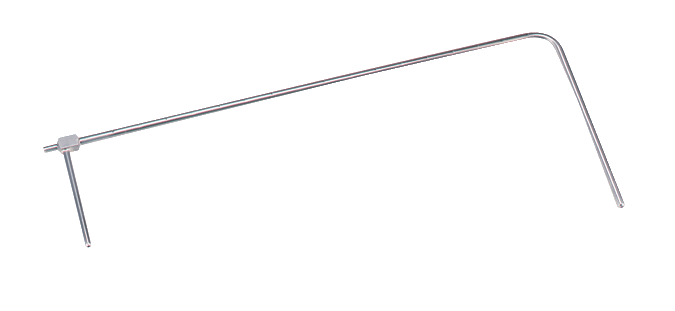

Series 160 Stainless Steel Pitot Tube
The Series 160 Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. A universal model fits the user supplied 3/4" schedule 40 pipe in any length.
Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.
Download the Air Velocity Calculator App for Android® devices.
Product Applications
- Monitor or control air velocity or air flow when combined with differential pressure gage, switch or transmitter
- Low sensitivity to misalignment up to 15 degrees
- No calibration needed due to ASHRAE tip design
- Silver soldered connections for leak-proof operation
- 5/16" models rated to 1500°F (815.5°C)
Specifications
- Series
- 160 Stainless Steel Pitot Tube
- Category/Type
- Air Quality
- Type
- Pitot Tubes
- Series
- 160 Stainless Steel Pitot Tube
