Averaging air flow grid.

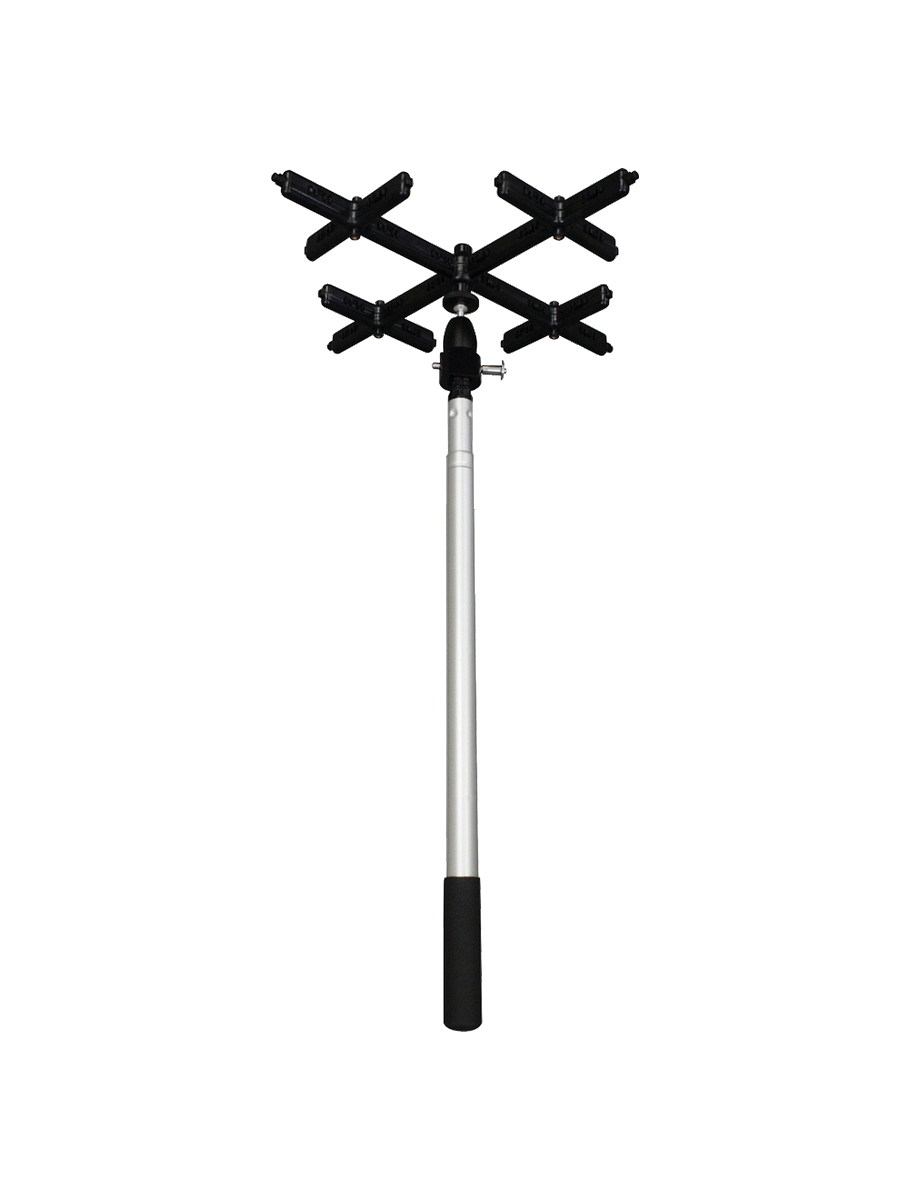

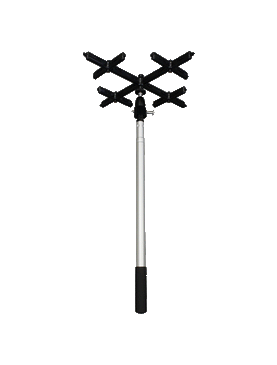

MODEL 160G AVERAGING AIR FLOW GRID

Extends Over 50" to Aid in Air Flow Output Checks

The Model 160G Averaging Air Flow Grid utilizes 16 sensing points to provideprecision sensing across its 16.5" (41.9 cm) length and width. The ball pivot joint andtightening nut allows the user to position the sensing grid at any angle in any directionfor ease of use in hard to reach locations. The included color coded tubing connectsto the integral barbed fittings, providing a differential pressure signal to a gage ormanometer where the readings can be converted into a velocity or flow reading.

Product Applications

Measure face air velocity on grills, diffusers, registers, exhaust hoods

Maximum reach of approximately 48" (122 cm)
16 sensing points provide an accurate average flow

Specifications

Service: Air or compatible gases.
Wetted Materials: Grid: Black polycarbonate; Ball pivot joint: AL; plastic; Handle:Aluminum; Standoffs: Aluminum with rubber bumpers; two sets: 1.25" (31.7 mm)and 2" (50.8 mm); 1/8" ID / 1/4" OD; Tubing: Two 10' (3 m) lengths of siliconerubber.
Accuracy: ±2% FS.
Temperature Limits: -40 to 257°F (-40° to 125°C).
K Factor: 0.84.
Range: 1000 to 5000 FPM (5 to 25 m/s).
Process Connection: 1/8 to 1/4" ID tubing.
Weight: 1.75 lb (0.79 kg).
Agency Approvals: RoHS.
