Documents: 160-12

Instruction Manual Series 160 Catalog Page More Info

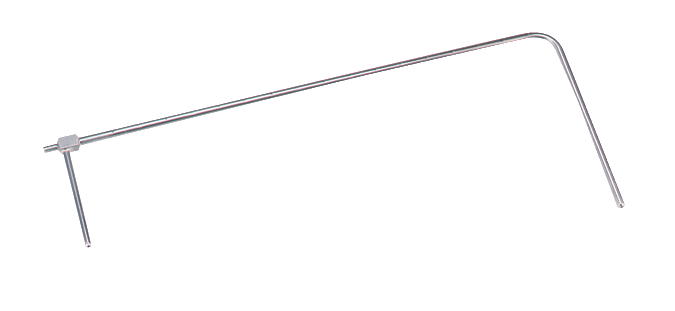

160-12 | Stainless steel Pitot tube | 5/16" dia. | 12-5/8" insertion length. | Dwyer

Stainless steel Pitot tube, 5/16" dia., 12-5/8" insertion length.

Brand: DwyerSKU: 160-12

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 160-12

Jump to: Overview & Specifications Reviews

Overview Details for 160-12

See catalog product page for full listing

Stainless steel Pitot tube | 5/16" dia. | 12-5/8" insertion length.

Series 160 Stainless Steel Pitot Tube

ASME Design Meets AMCA and ASHRAE Codes

The Series 160 Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. A universal model fits the user supplied 3/4" schedule 40 pipe in any length.

Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.

Download the Air Velocity Calculator App for Android® devices.

Product Applications

Monitor or control air velocity or air flow when combined with differential pressure gage, switch or transmitter

Low sensitivity to misalignment up to 15 degrees
No calibration needed due to ASHRAE tip design
Silver soldered connections for leak-proof operation
5/16" models rated to 1500°F (815.5°C)
