15013 | Temperature controller | thermocouple input | relay output | no alarm. | Dwyer

Temperature controller, thermocouple input, relay output, no alarm.

Brand: DwyerSKU: 15013

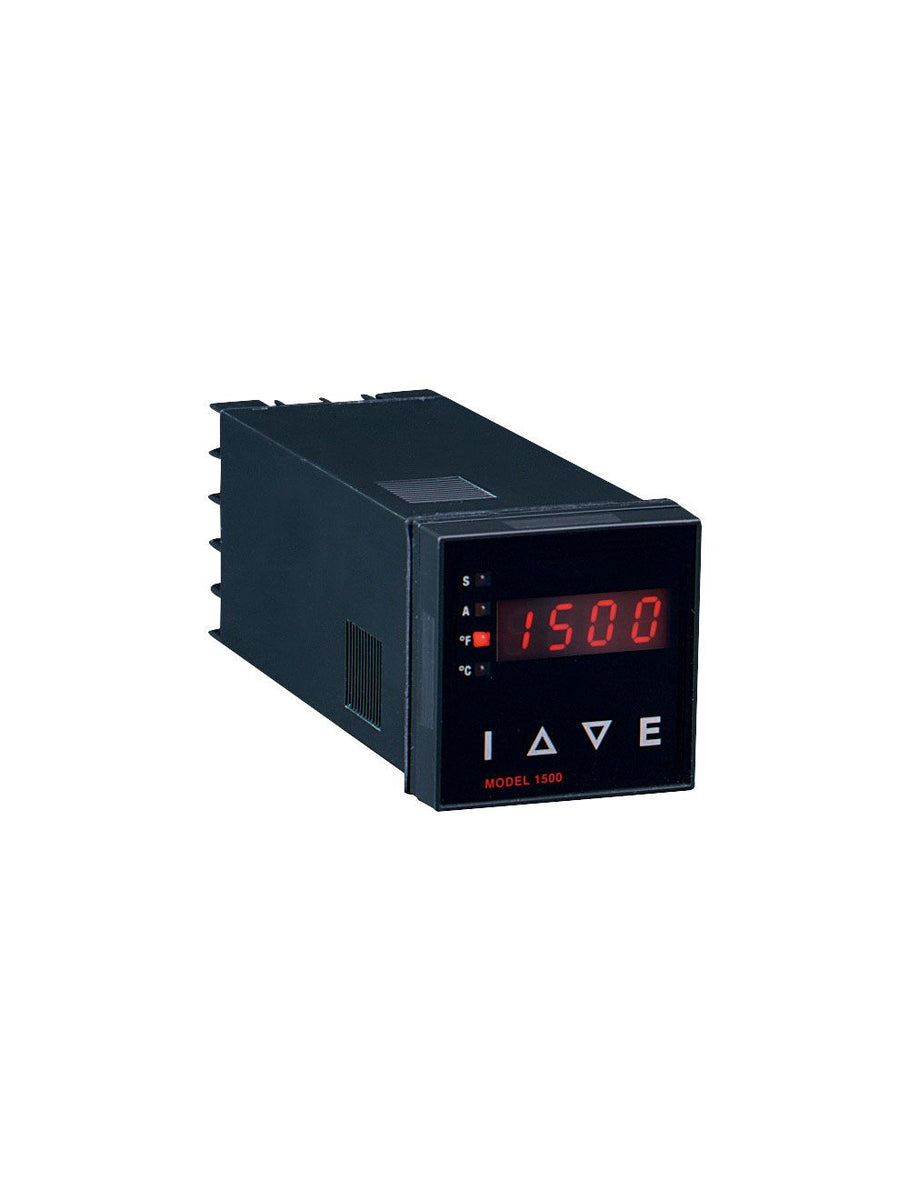

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 15013

Jump to: Overview & Specifications Reviews

Overview Details for 15013

See catalog product page for full listing

Temperature controller | thermocouple input | relay output | no alarm.

Series 1500 Temperature Controller

1/16 DIN, Microprocessor Based, Self-Tune PID

The Series 1500 Temperature Controller is a reliable, accurate and fully programmable temperature control or alarm in an economical 1/16 DIN case. Microprocessor based, all control functions are easily programmed from the waterproof, corrosion resistant front panel. Models are available that accept field selectable J, K, T, E or N type thermocouples or RTD 100Ω DIN (.00385 ohms/ohm/°C) inputs and provide SSR, Relay or 5 VDC Logic outputs. All models are programmable for on-off, P, PI, manual PID or automatic Self-Tune PID control. Like the control output, optional alarm is field configurable direct acting (cooling) or reverse acting (heating) and is easily adjusted for either automatic or manual reset to provide independent high or low system protection. Four security levels are password protected.

Specifications

Series: 1500 Temperature Controller
Category/Type: Process Control
Type: Process Controllers
Series: 1500 Temperature Controller
Inputs: Thermocouple (J type stocked); field selectable K; T; E; or N type; RTD (100Ω DIN).
Display: 4 digit; 7 segment 0.3" high LED display; Set Point and Alarm status LED indicators; °F or °C LED indicators.
Accuracy: ±0.25% of span ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50 to 400 Hz. single phase; 132 to 240 VDC (nom.) +10% - 20%. 5 VA maximum power consumption.
Temperature Range: Operating 14 to 131°F (-10 to 55°C); storage -40 to176°F (-40 to 80°C).
Output Ratings: SSR: 3.5A @ 240 VAC max. @ 77° (25°C) typical. Relay (SPST): 3A res.; 1.5A ind. @ 250 VAC; Pilot Duty = 250 VA; 2A @ 125 VAC or 1A @ 250 VAC.
Alarm Rating (optional): Relay (SPST): 3A res.; 1.5A ind. @ 250 VAC.
Isolation: Relay and SSR outputs are isolated.
Sensor Break Protection: De-energizes control output.
Front Panel Rating: NEMA 4X (IP65).
Weight: 8 oz (227 g).
Agency Approvals: cUL; UL.
