1201-3 | Replacement filter for F451 (package of 3). | Dwyer
Replacement filter for F451 (package of 3).
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1201-3
Documents and manuals
Dwyer 1201-3 Documents
Overview
Details for 1201-3
See catalog product page for full listing
Replacement filter for F451 (package of 3).

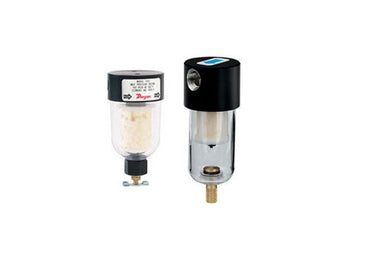

Model F222/F451 Liquid/Particle Filter
Liquid/Particle Filter
Compressed air filters protect equipment and instrumentation from harmful contaminants such as dirt, water and oil. Liquids are continuously coalesced and released through the manual drain valves. Replaceable filter element removes particles and droplets as small as 0.01 micron with 93% efficiency. Units have 1/4" female NPT inlet and outlet and manual drain valve.
Specifications
Item Number | 1201-3 |
Brand | Dwyer |
Category/Type | Accessories |
Filtration Efficiency | 93% (removal of 0.01 micron particles). |
Inlet & Outlet Ports | 1/4" female NPT. |
Materials of Construction | Anodized aluminum head; polycarbonate bowl; cadmium plated steel tie rod; nylon internals; Buna-N seal. |
Max. Flow at 100 psig | 22 scfm (F222); 45 scfm (F451). |
Maximum Pressure | 150 psig (10 bar). |
Maximum Temperature | 130°F (54°C). |
Mounting | In-line only (F222); 1/4-20 mounting holes (F451). |
Type | Filters; Regulators and Lubricators |
Weight | 0.5 lb (0.2 kg) (F222); 1.1 lb (0.5 kg) (F451). |
