Documents: 102.5

Instruction Manual (100)Instruction Manual (170/171/172)Series 100 Catalog Page A-396A Red Gage Fluid - English Red Gage Fluid - French Red Gage Fluid - Spanish Red Gage Fluid - German More Info

102.5 | Solid plastic portable gage | range .20-0-2.0" w.c. | .01 minor div. | 8-3/4" scale | plastic carrying case. | Dwyer

Solid plastic portable gage, range .20-0-2.0" w.c., .01 minor div., 8-3/4" scale, plastic carrying case.

Brand: DwyerSKU: 102.5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 102.5

Jump to: Overview & Specifications Reviews

Overview Details for 102.5

See catalog product page for full listing

Solid plastic portable gage | range .20-0-2.0" w.c. | .01 minor div. | 8-3/4" scale | plastic carrying case.

Series 100 Durablock® Solid Plastic Portable Gage

Suitable for Total Pressures Up to 100 psig, Temperatures Up to 150°F, Accuracy ±2% of Full Scale (1% on Model 115 Only)

Dwyer® Series 100 Durablock® Solid Plastic Portable Manometers are precision instruments in inclined and vertical (well-type) styles for the measurement of static pressure, vacuum or differential pressure. To assure the accuracy required in instruments of this type, all machining of bores and wells is to the highest standards of precision backed by Dwyer's years of experience in the fabrication of acrylic instruments.

NIST CALIBRATION available in Product Configurator.

Click here, if you require a Safety Data Sheet for the Red Gage Fluid.

1" Thick Acrylic Plastic Body is a solid block, virtually unbreakable, stable and free of the danger of distortion.
Drilled bore Accurate to ±.0002" are permanently free of bends or crooks, will not require recalibration because of distortion.
Selected Gage Oil with high wetability characteristics forms a consistent, well shaped meniscus for easy readability.
Adjustable Reflective Chrome Finish Scales with thumbscrew locking for easy zeroing.
Parallax-Free Reading for maximum accuracy and consistency is achieved by simply aligning the meniscus with its image reflected in the polished aluminum scale.
Screw Type Leveling Adjustment for inclined style gages provides rapid and accurate leveling with reference to integral sensitive ground glass bubble level.

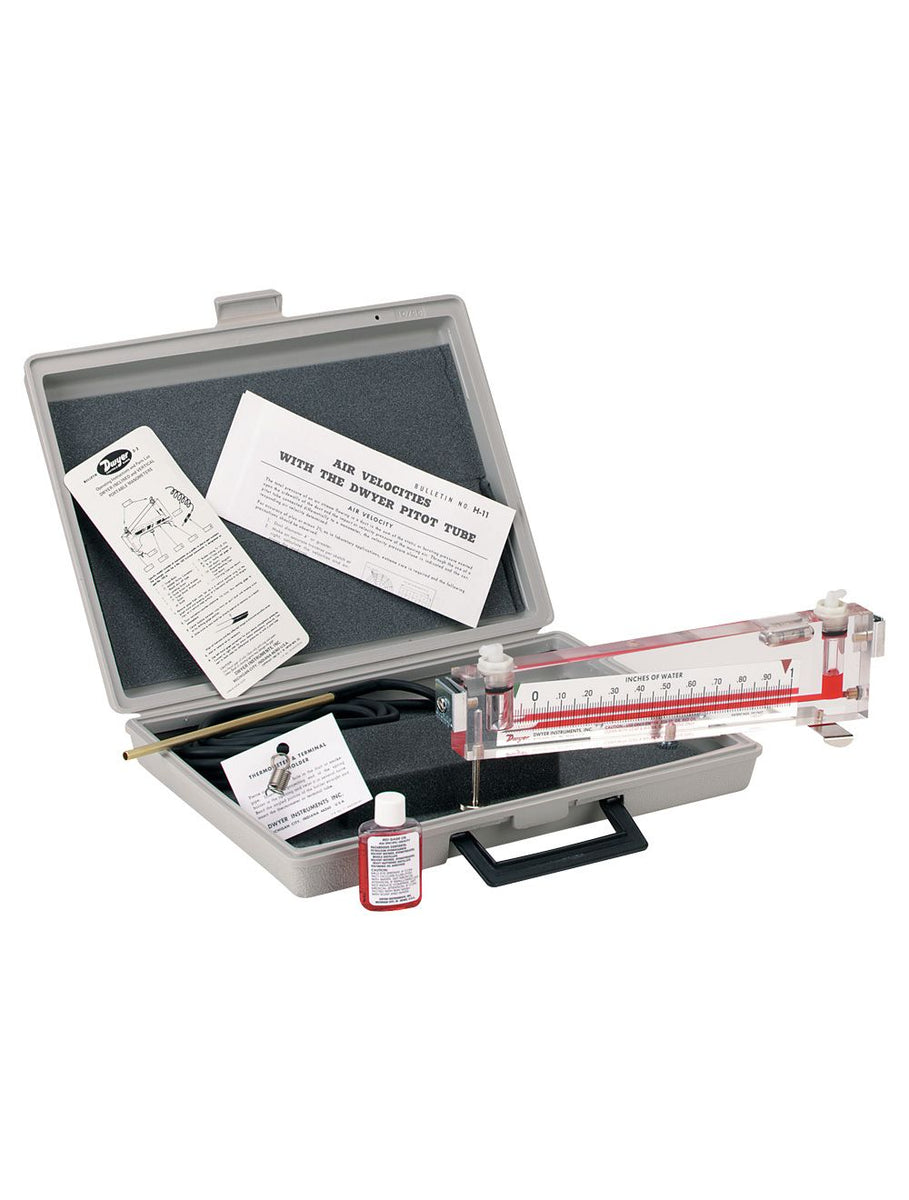

Furnished Complete with accessories and plastic carrying case.
