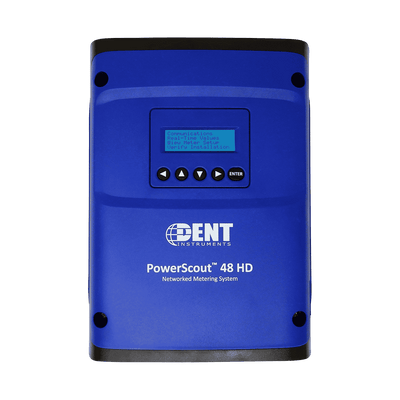

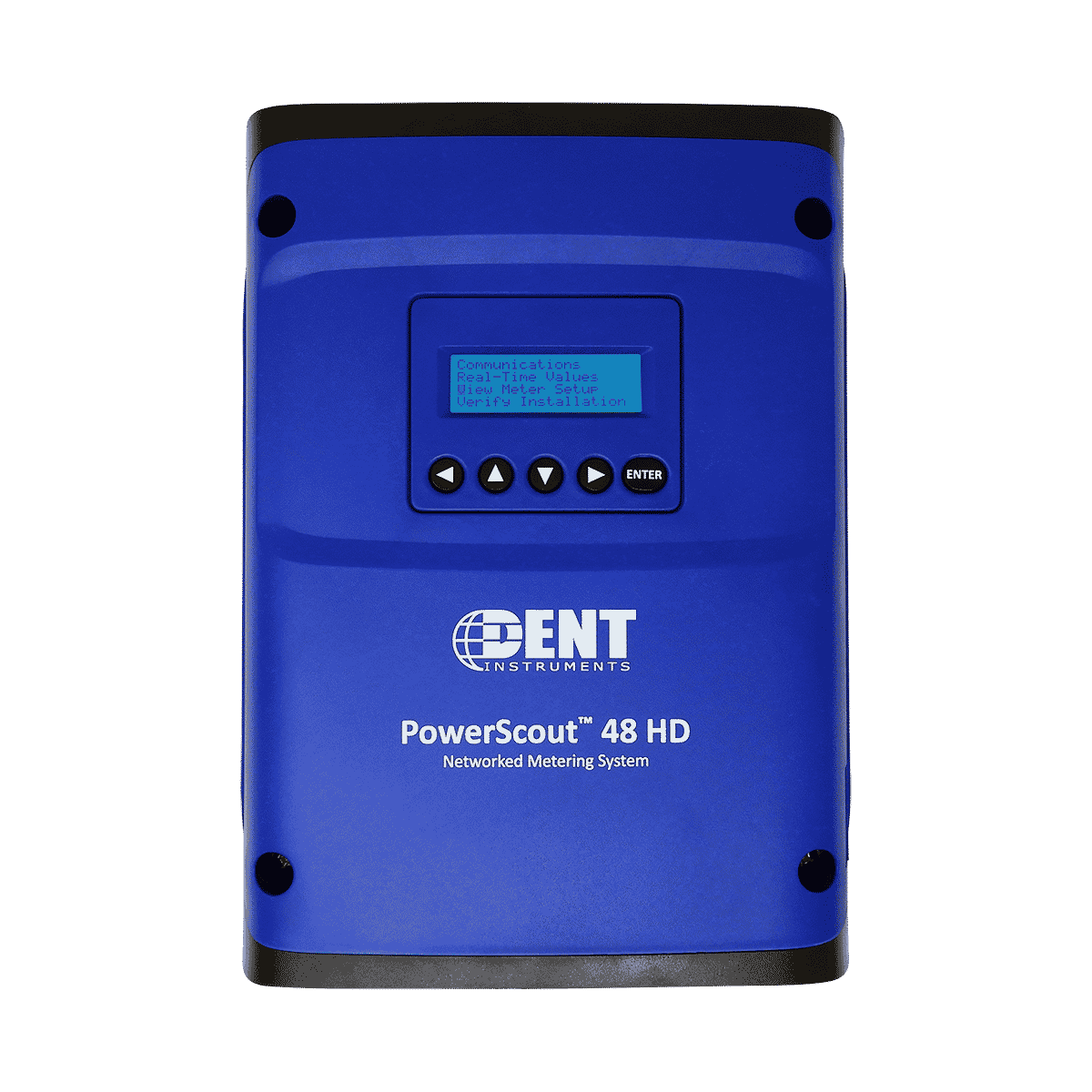

PS48HD-C-D-N | PowerScout 48 HD Multi-Circuit Power Submeter | Dent

Maximum Flexibility for Monitoring The flexible design of the PowerScout 48 HD allows it to be configured for monitoring any combination of up to 16 three-phase or 48 single-phase electrical circuits across two separate voltages with revenue grade accuracy (ANSI C12.20-2010 Class 0.2). Equip the PowerScout 48 HD meter with any combination of DENT’s split-core, solid-core, or RoCoil (Rogowski) CTs. Easy Installation Every PowerScout is line powered and designed to operate on a broad range of voltages, from 90-600VAC, and features two separate voltage inputs. Modbus or BACnet protocols are field-selectable and any combination of split-core or flexible RōCoil CTs can be used. Additionally, PowerScout 48 HD meters have passed rigorous BTL (BACnet Testing Laboratory) testing to ensure interoperability across a wide range of systems and devices.Configure the meter using the ViewPoint HD software utility and a direct USB connection prior to installation. Eliminate expensive trips back into the field: patented* PhaseChek™ Technology ensures proper CT-to-phase installation the first time.If ordered with an enclosure, 1-inch EMT conduit connects easily to the enclosure housing – no drilling required. Minimum Part Numbers, Maximum Features Keep it simple: Don’t fight with a long list of SKUs only to realize an important feature is missing. All PowerScout HD Series Meters are equipped with smart, standard features like the flexibility to switch between Modbus® or BACnet®, Ethernet or Serial (RS-485), or the ability to use any millivolt CT, including Rogowski coils, on any channel. When installed, the platform agnostic PowerScout HD Series meter easily integrates within connected products of any building management system (BMS) software, models equipped with BACnet® and Modbus® protocols and can be easily utilized with any system.
