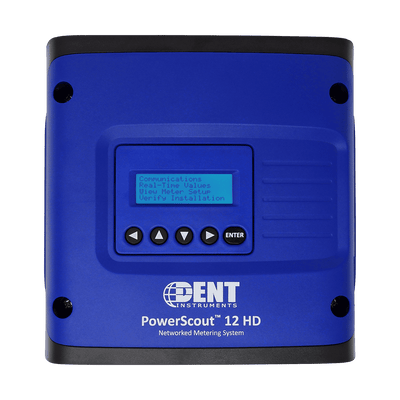

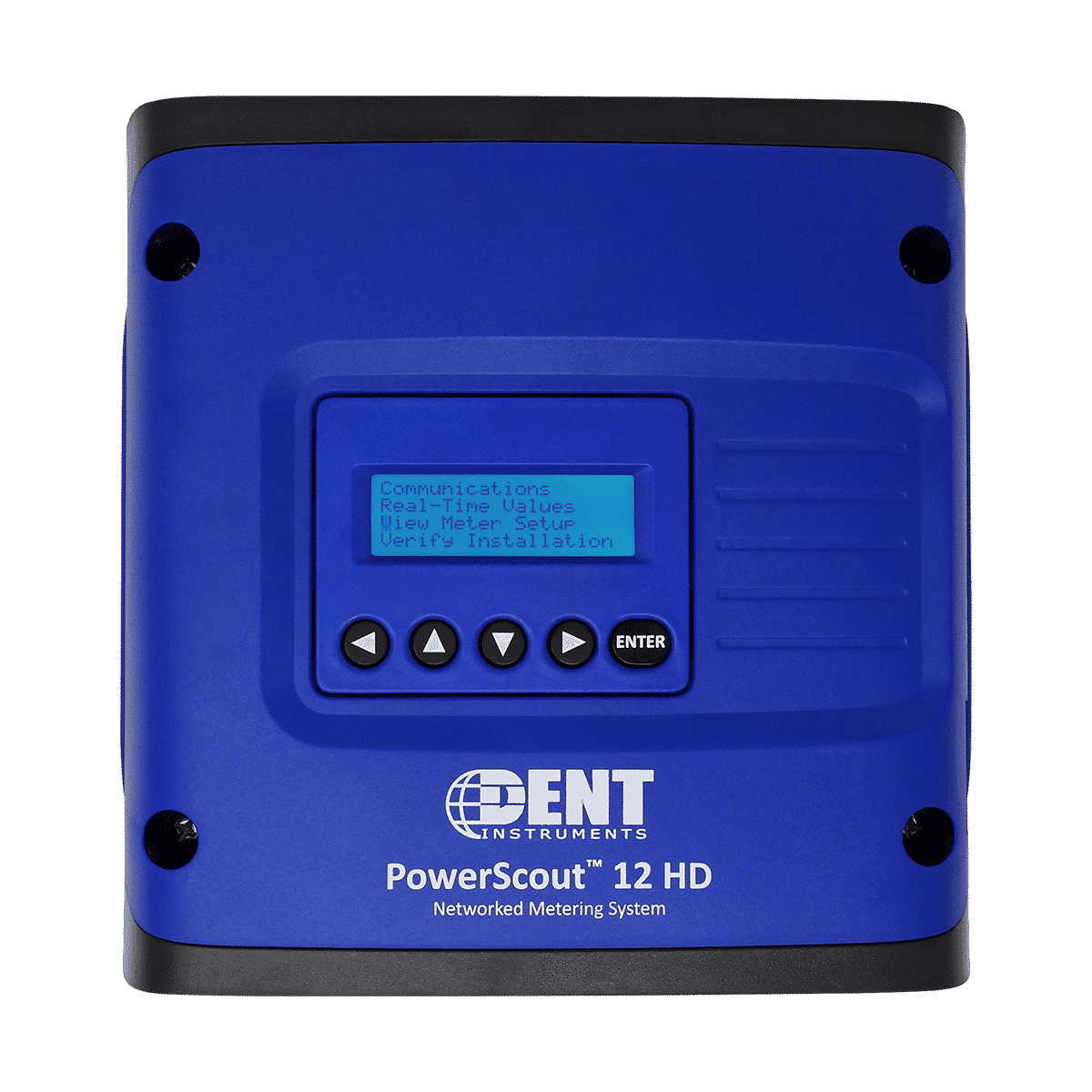

PS12HD-C-D-N-C | PowerScout 12 HD Multi-Circuit Power Submeter | Dent

Maximum Flexibility for Monitoring The PowerScout 12 HD is a versatile, multi-channel instrument that can be configured to monitor multiple electrical circuits simultaneously. It can be supplied with any of DENT’s split-core, solid-core, or RoCoil (Rogowski) CTs. Monitor any combination of up to 4 three-phase or 12 single-phase electrical devices with a single PowerScout 12 HD. With data updates every 1 second and ANSI C12.20-2010 Class 0.2 revenue grade accuracy (depending on CT), the PowerScout 12 HD is well-suited for data center monitoring, tenant submetering, and accountability metering in commercial, retail, and industrial facilities. Easy Installation Every PowerScout is line powered and designed to operate on a broad range of voltages, from 90-600VAC. Modbus or BACnet protocols are field-selectable, and any combination of split-core or flexible RōCoil CTs can be used. Configure the meter using the ViewPoint HD software utility and a direct USB connection prior to installation. Eliminate expensive trips back into the field: patented* PhaseChek™ Technology ensures proper CT-to-phase installation the first time (available on instruments equipped with a display). If ordered with an enclosure, 1-inch EMT conduit connects easily to the enclosure housing – no drilling required. Minimum Part Numbers, Maximum Features Keep it simple: Don’t fight with a long list of SKUs only to realize an important feature is missing. All PowerScout HD Series Meters are equipped with smart, standard features like the flexibility to switch between Modbus® or BACnet®, or the ability to use any millivolt CT, including Rogowski coils, on any channel. When installed, the platform-agnostic PowerScout HD Series meter easily integrates within connected products of any building management system (BMS) software, models equipped with BACnet® and Modbus® protocols, and can be easily utilized with any system.
