Overview
Details for CCN-1 MODBUS
CCN stands for Carrier Comfort Network, A proprietary communicating protocol used by Carrier Corp. Almost every chiller that Carrier sells today has CCN built in. If your Automation system needs to access the running data on a Carrier chiller, they will need a gateway to convert that data from CCN. Carrier has some gateway options, for example: 33cntran485; sim; ivu, but all of these are expensive and hard to configure.

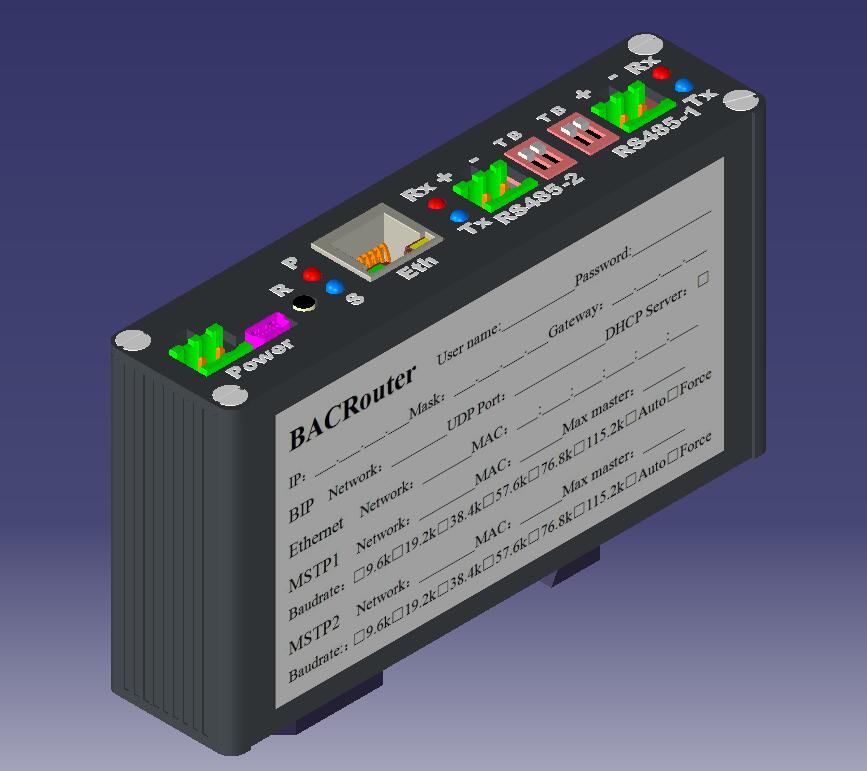

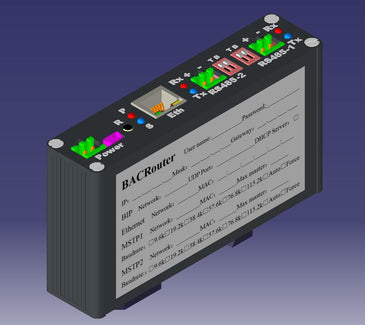

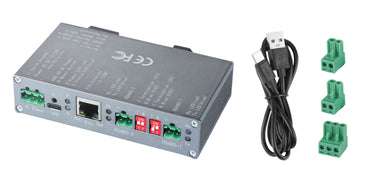

Our CCN Gateway is designed to map the Carrier CCN protocol to Modbus/BACnet. However it also has some other advantages:
Our CCN Gateway is aim to map Carrier CCN protocol to Modbus/BACnet, it have some advantages:
- Web UI, easy to configure.
- Map up to 16 CCN devices.
- No total map point limit.
- Could map every points in STATUS/MAINTENANCE/SETPOINT tables.
- User defined data update interval.
CCN Gateway is proven in the field to be compatible with Carrier chillers with the following digits in their serial number:19XL/XR/XRV 30RA/RB/RQ/HXC 30XA/XW/XQ 23XL 16DJ/DN/DE. We released version 1.0 on 2010, and have since upgraded to 1.2 on 2014. WE now present the more powerful version 2.0, We have hundreds projects and thousands of chillers running steadily for years.
Specifications
Item Number | CCN-1 MODBUS |
Brand | Generic BACnet Router |
1 Router Type | CCN |
Collection | Networking |
