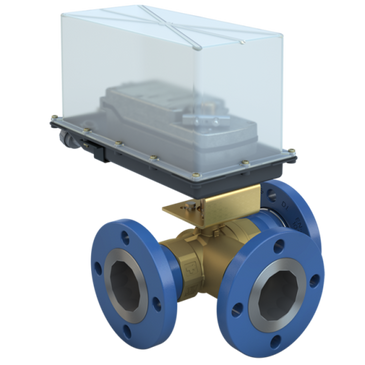

STM4-3-117C/DMS24-180-A-WS | 4" | STM Flanged Characterized ball valve | 3way | CV 117 | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW | Weather Shield for DS-180 Actuator | Bray

Brand: BraySKU: STM4-3-117C/DMS24-180-A-WS

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for STM4-3-117C/DMS24-180-A-WS

Product: STM4-3-117C/DMS24-180-A-WS
Valve Size: 4"
2-Way / 3-Way: 3-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open Branch to Right
Valve End Connection: ANSI Class 150 Raised Faced Flanged
Assembly Cv: 117
Actuator Control Signal: Modulating
Actuator Action: Spring Return
Fail Position: Fail Open Branch to Right
Actuator Features: Auxiliary Switches
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 50
Weight: 72.4
