Documents: STM3-3-176C/DS24-180-T-WS

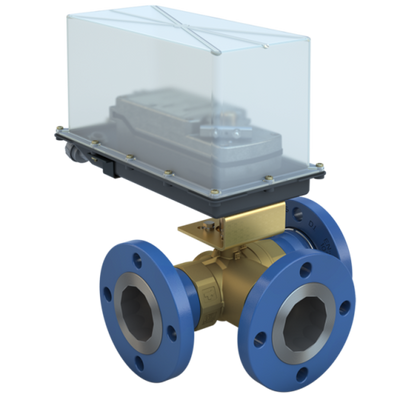

STM3-3-176C/DS24-180-T-WS | 3" | STM Flanged Characterized ball valve | 3way | CV 176 | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | Weather Shield for DS-180 Actuator | Bray

3 inch | STM Flanged Characterized ball valve | 3way | CV 176 | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | Weather Shield for DS-180 Actuator

Brand: BraySKU: STM3-3-176C/DS24-180-T-WS
Bray | STM3-3-176C/DS24-180-T-WS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM3-3-176C/DS24-180-T-WS

Overview Details for STM3-3-176C/DS24-180-T-WS



Specifications

Product
STM3-3-176C/DS24-180-T-WS
Valve Size
3"
2-Way / 3-Way
3-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open Branch to Right
Valve End Connection
ANSI Class 150 Raised Faced Flanged
Assembly Cv
176
Actuator Control Signal
On/Off;Floating
Actuator Action
Spring Return
Fail Position
Fail Open Branch to Right
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification
IP54;NEMA 2
Close Off Pressure
50
Weight
59.4
