Documents: STM3-3-117/DC24-310-TA
STM3-3-117/DC24-310-TA | 3" | STM Flanged Characterized ball valve | 3way | CV 117 | Damper & Valve actuator | 24 Vac | 310 lb-in | floating | Non-Spring Return | SW | Time out | Bray
3 inch | STM Flanged Characterized ball valve | 3way | CV 117 | Damper & Valve actuator | 24 Vac | 310 lb-in | floating | Non-Spring Return | SW | Time out

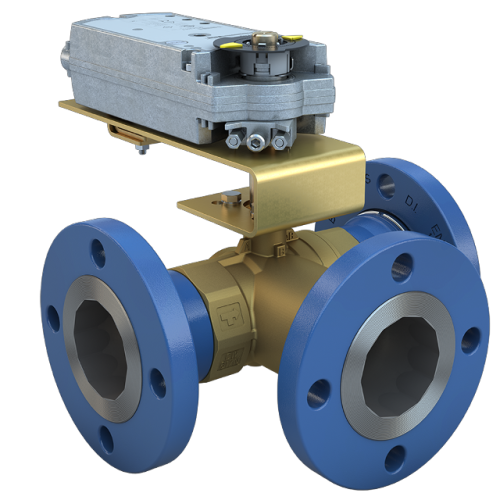

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM3-3-117/DC24-310-TA
Overview Details for STM3-3-117/DC24-310-TA
Specifications
- Product
- STM3-3-117/DC24-310-TA
- Valve Size
- 3"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open Straight (Branch Closed)
- Valve End Connection
- ANSI Class 150 Raised Faced Flanged
- Assembly Cv
- 117
- Actuator Control Signal
- Floating
- Actuator Action
- Non Spring Return
- Fail Position
- Fail Last
- Actuator Features
- Time Out;Auxiliary Switches
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- 3/8" Flex
- Actuator Area Classification
- IP54
- Close Off Pressure
- 50
- Weight
- 53.4
