Documents: STM3-2-176/DCM24-310-A-WS
STM3-2-176/DCM24-310-A-WS | 3" | STM Flanged Characterized ball valve | 2way | CV 176 | Normally Open | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | SW | Bray
3 inch | STM Flanged Characterized ball valve | 2way | CV 176 | Normally Open | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | SW | Weather Shield for DC-310 Actuator

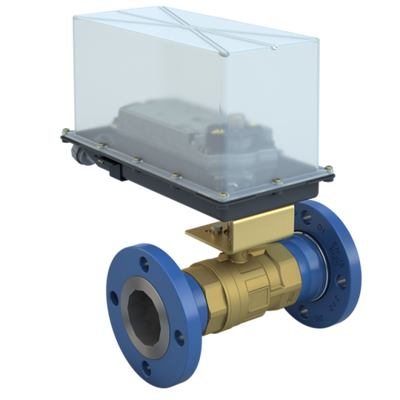

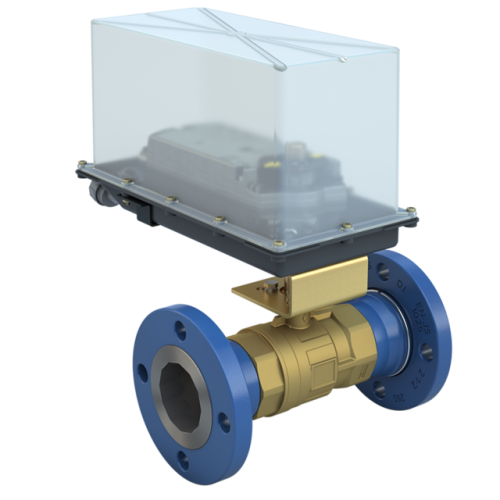

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM3-2-176/DCM24-310-A-WS
Overview Details for STM3-2-176/DCM24-310-A-WS
Specifications
- Product
- STM3-2-176/DCM24-310-A-WS
- Valve Size
- 3"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- ANSI Class 150 Raised Faced Flanged
- Assembly Cv
- 176
- Actuator Control Signal
- Modulating
- Actuator Action
- Non Spring Return
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- 3/8" Flex
- Actuator Area Classification
- IP54
- Close Off Pressure
- 100
- Weight
- 44.4
