STM250-3-47/DCM24-310-WS | 2.5" | STM Flanged Characterized ball valve | 3way | CV 47 | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | Weather Shield for DC-310 Actuator | Bray

2.5 inch | STM Flanged Characterized ball valve | 3way | CV 47 | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | Weather Shield for DC-310 Actuator

Brand: BraySKU: STM250-3-47/DCM24-310-WS
Bray | STM250-3-47/DCM24-310-WS

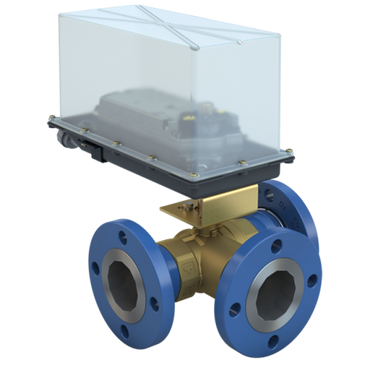

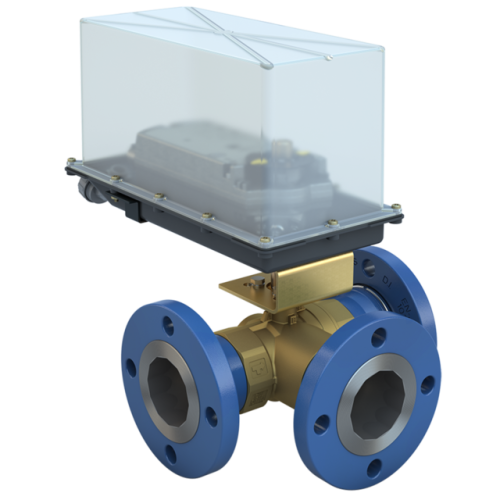

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM250-3-47/DCM24-310-WS
Jump to: Overview & Specifications Reviews

Overview Details for STM250-3-47/DCM24-310-WS



Specifications

Product
STM250-3-47/DCM24-310-WS
Valve Size
2.5"
2-Way / 3-Way
3-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open Straight (Branch Closed)
Valve End Connection
ANSI Class 150 Raised Faced Flanged
Assembly Cv
47
Actuator Control Signal
Modulating
Actuator Action
Non Spring Return
Fail Position
Fail Last
Actuator Power Supply
24 VAC
Actuator Conduit Connection
3/8" Flex
Actuator Area Classification
IP54
Close Off Pressure
50
Weight
51.4
