Documents: STM250-2-74C/DMS24-180-A-WS

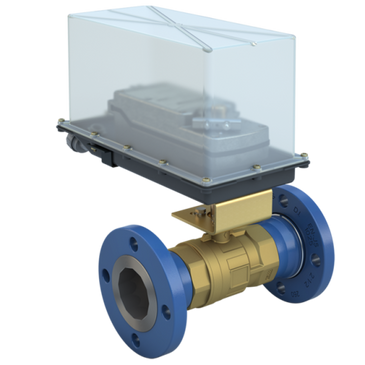

STM250-2-74C/DMS24-180-A-WS | 2.5" | STM Flanged Characterized ball valve | 2way | CV 74 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW | Bray
2.5 inch | STM Flanged Characterized ball valve | 2way | CV 74 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW | Weather Shield for DS-180 Actuator

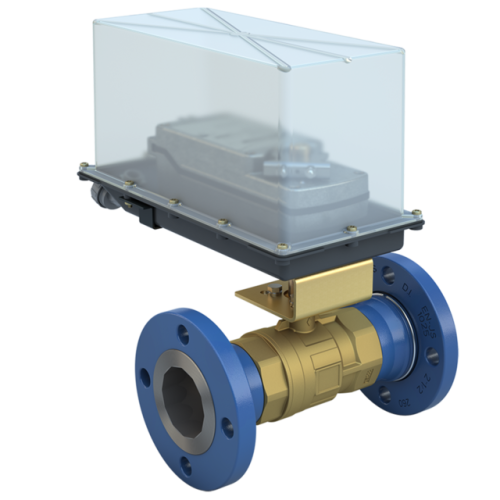

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM250-2-74C/DMS24-180-A-WS
Overview Details for STM250-2-74C/DMS24-180-A-WS
Specifications
- Product
- STM250-2-74C/DMS24-180-A-WS
- Valve Size
- 2.5"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Closed
- Valve End Connection
- ANSI Class 150 Raised Faced Flanged
- Assembly Cv
- 74
- Actuator Control Signal
- Modulating
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Features
- Auxiliary Switches
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 100
- Weight
- 44.4
