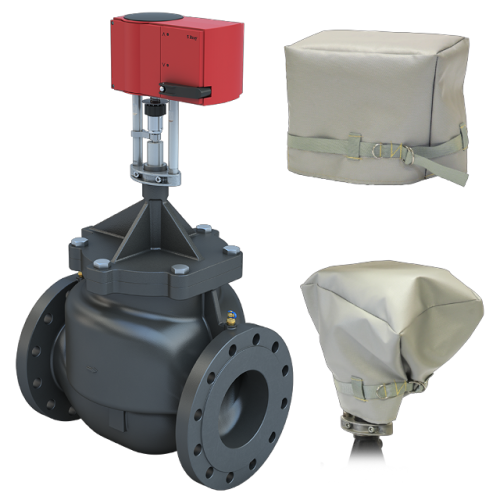

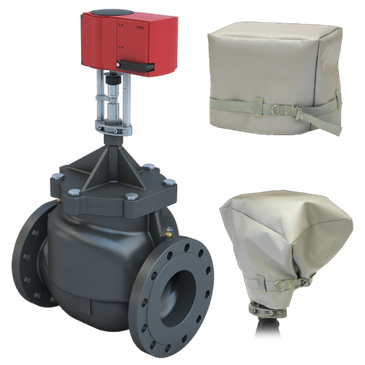

SSM-4-A-L-67/GA24-562-WS | 4" Flanged ANSI 125 | 67.32 GPM Pressure Independent Control Valve | L Cartridge | NO | Linear Actuator | 24 VAC Floating;Modulating;On/Off | Fail Last | with Enclosed Terminal Strip;Time Out | Bray

Brand: BraySKU: SSM-4-A-L-67/GA24-562-WS

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for SSM-4-A-L-67/GA24-562-WS

Product: SSM-4-A-L-67/GA24-562-WS
Valve Size: 4"
2-Way / 3-Way: 2-Way
Valve Product Type: PIC Valve
Valve Position: Normally Open
Valve End Connection: ANSI Class 125 Flanged
GPM: 67.32
Minimum Pressure Differential: 2.83
Actuator Control Signal: On/Off;Floating;Modulating
Actuator Action: Non Spring Return
Fail Position: Fail Last
Actuator Features: Time Out;Enclosed Terminal Strip
Actuator Power Supply: 24 VAC
Actuator Conduit Connection: Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification: IP66
Actuator Stroke Time: Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm
Close Off Pressure: 116
Weight: 126
