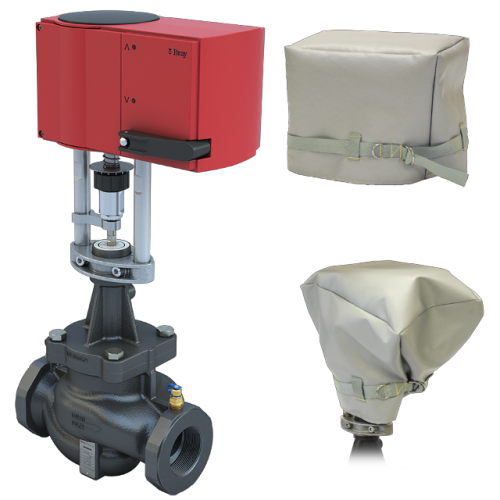

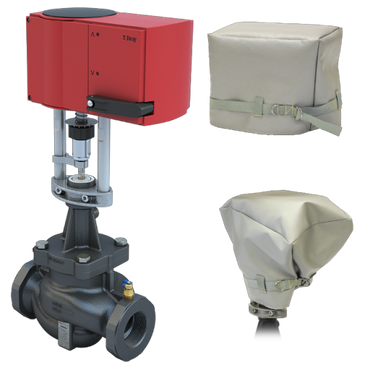

SS-2-N-H-42C/GASEX24-450-A-WS | 2" NPT | 42.3 GPM Pressure Independent Control Valve | H Cartridge | NC | Linear Actuator | 24 VAC Floating;Modulating;On/Off | Fail Closed | SWes;Enclosed Terminal Strip;Time Out | Bray

Brand: BraySKU: SS-2-N-H-42C/GASEX24-450-A-WS

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for SS-2-N-H-42C/GASEX24-450-A-WS

Product: SS-2-N-H-42C/GASEX24-450-A-WS
Valve Size: 2"
2-Way / 3-Way: 2-Way
Valve Product Type: PIC Valve
Valve Position: Normally Closed
Valve End Connection: NPT Threaded
GPM: 42.3
Minimum Pressure Differential: 1.9
Actuator Control Signal: On/Off;Floating;Modulating
Actuator Action: Spring Return
Fail Position: Fail Closed
Actuator Features: Time Out;Auxiliary Switches;Enclosed Terminal Strip
Actuator Power Supply: 24 VAC
Actuator Conduit Connection: Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification: IP66
Actuator Stroke Time: Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
Close Off Pressure: 58
Weight: 42.3
