Documents: MKL3-9100/70-24-0501SVH-BBU

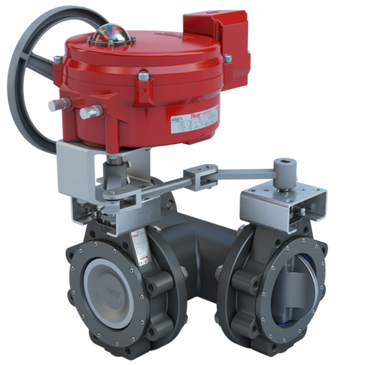

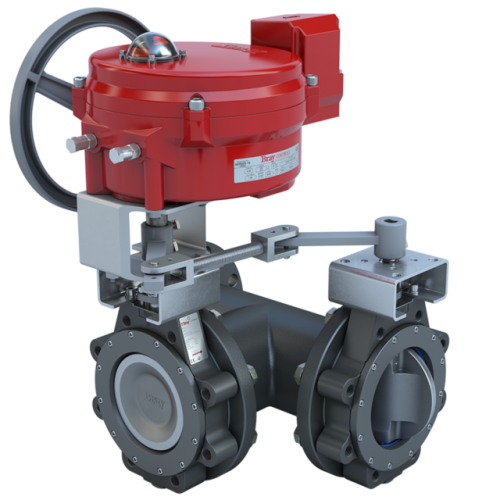

MKL3-9100/70-24-0501SVH-BBU | 10" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 1630 | 24 VAC/30VDC | Modulating | 5000 lb-in | NEMA 4 | Heater | & Battery Backup unit | Bray

10 inch 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 1630 | | 24 VAC/30VDC | Modulating | 5000 lb-in | NEMA 4 | Heater | & Battery Backup unit

Brand: BraySKU: MKL3-9100/70-24-0501SVH-BBU
Bray | MKL3-9100/70-24-0501SVH-BBU
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL3-9100/70-24-0501SVH-BBU

Overview Details for MKL3-9100/70-24-0501SVH-BBU



Specifications

Product
MKL3-9100/70-24-0501SVH-BBU
Valve Size
10"
2-Way / 3-Way
3-Way
Valve Product Type
Butterfly Valve
Valve Position
Master N.O. Branch/Slave N.C. Left (9)
Valve End Connection
ANSI Class 150 Lugged
Assembly Cv
1630
Flow Direction
Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal
Modulating
Actuator Action
Fail Safe
Fail Position
Fail Open Branch to Right
Actuator Features
Auxiliary Switches;Enclosed Terminal Strip;Heater;Battery Back-Up Failsafe;Manual Override Handwheel
Actuator Power Supply
24 VAC/30 VDC
Actuator Conduit Connection
2 x 3/4" NPT
Actuator Area Classification
IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure
250
Weight
519.7
