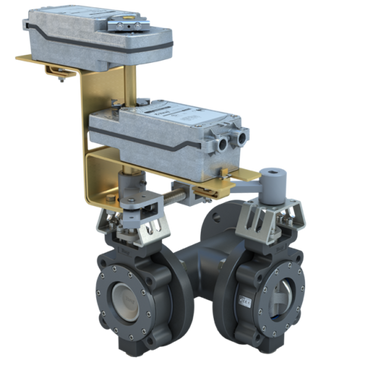

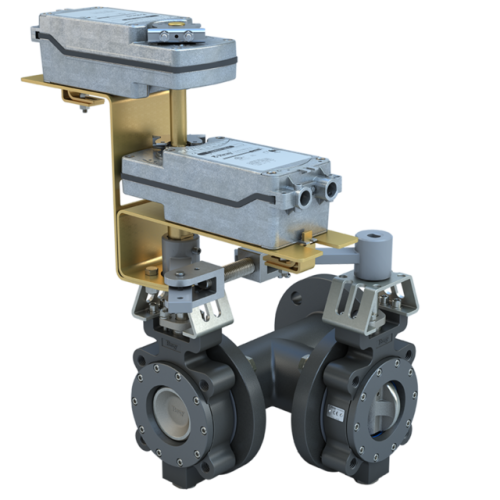

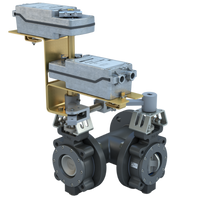

MKL3-9030/DS24-180-T-D | 3" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 185 | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | Dual | Bray

Brand: BraySKU: MKL3-9030/DS24-180-T-D

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for MKL3-9030/DS24-180-T-D

Product: MKL3-9030/DS24-180-T-D
Valve Size: 3"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.O. Branch/Slave N.C. Left (9)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 185
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: On/Off;Floating
Actuator Action: Spring Return
Fail Position: Fail Open Branch to Right
Actuator Features: Dual Mounted
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 285
Weight: 91.8
