MKL3-8160/AU-2130SV | 16" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 3700 | 120 VAC | Modulating | 21300 lb-in | NEMA 4 | Bray
16 inch 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 3700 | | 120 VAC | Modulating | 21300 lb-in | NEMA 4

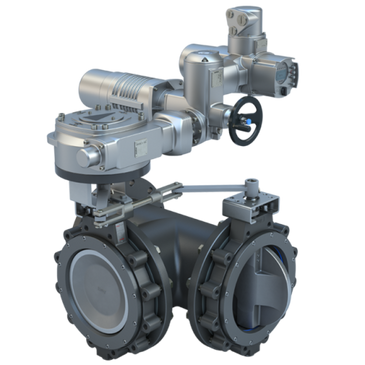

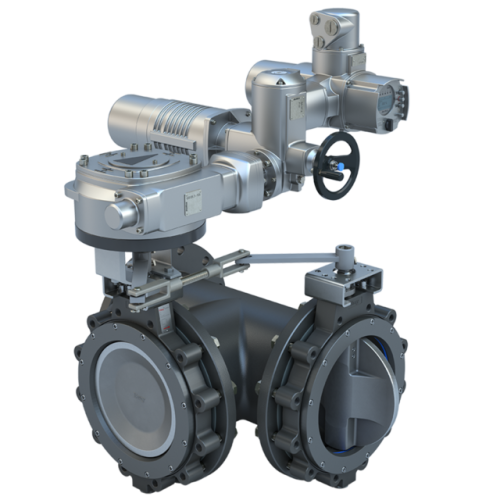

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL3-8160/AU-2130SV
Documents and manuals
Bray MKL3-8160/AU-2130SV Documents
Overview
Details for MKL3-8160/AU-2130SV
Specifications
- Product
- MKL3-8160/AU-2130SV
- Valve Size
- 16"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Master N.O. Left/Slave N.C. Branch (8)
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 3700
- Flow Direction
- Bi-Directional | Uni-Directional (Seat Retainer Upstream)
- Actuator Control Signal
- Modulating
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel;Torque Switches
- Actuator Power Supply
- 120 VAC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- NEMA 4X;NEMA 6P
- Close Off Pressure
- 250
- Weight
- 1474
