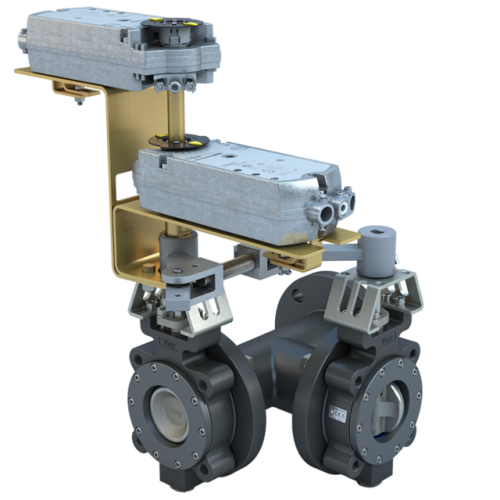

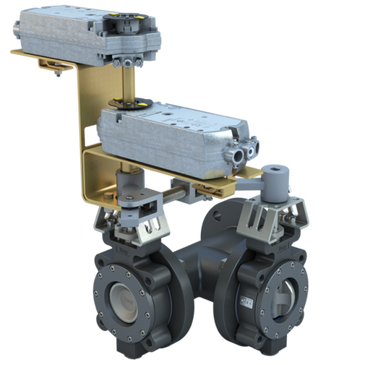

MKL3-0030/DCM24-310-D | 3" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 123 | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | Dual | Bray
3 inch 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 123 | | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | Dual
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL3-0030/DCM24-310-D
Documents and manuals
Bray MKL3-0030/DCM24-310-D Documents
Overview
Details for MKL3-0030/DCM24-310-D
Specifications
- Product
- MKL3-0030/DCM24-310-D
- Valve Size
- 3"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Master N.O. Branch/Slave N.C. Right (10)
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 123
- Flow Direction
- Bi-Directional | Uni-Directional (Seat Retainer Upstream)
- Actuator Control Signal
- Modulating
- Actuator Action
- Non Spring Return
- Fail Position
- Fail Last
- Actuator Features
- Dual Mounted
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- 3/8" Flex
- Actuator Area Classification
- IP54
- Close Off Pressure
- 285
- Weight
- 87.8
