Documents: MKL2-N025/DCM24-310-A-WS
MKL2-N025/DCM24-310-A-WS | 2.5" Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 78 | Normally Open | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | SW | Bray
2.5 inch Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 78 | Normally Open | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | SW | Weather Shield for DC-310 Actuator

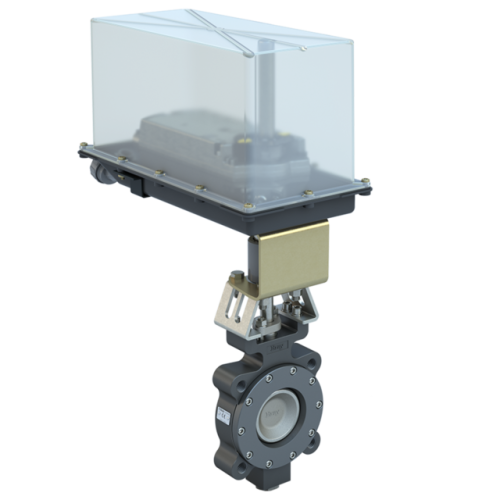

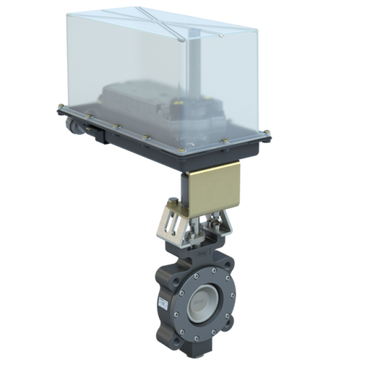

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL2-N025/DCM24-310-A-WS
Overview Details for MKL2-N025/DCM24-310-A-WS
Specifications
- Product
- MKL2-N025/DCM24-310-A-WS
- Valve Size
- 2.5"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Normally Open
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 78
- Flow Direction
- Bi-Directional | Uni-Directional (Seat Retainer Upstream)
- Actuator Control Signal
- Modulating
- Actuator Action
- Non Spring Return
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- 3/8" Flex
- Actuator Area Classification
- IP54
- Close Off Pressure
- 285
- Weight
- 25.4
