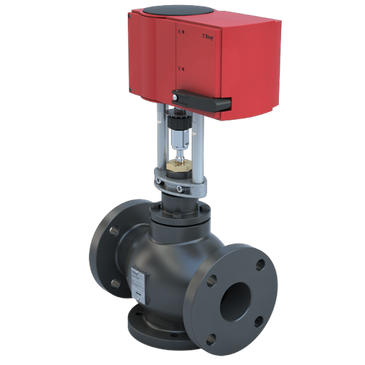

DG6-3-400/GASRE24-450-A | 6" | Flanged Globe valve | 3way | Cast Iron body | Bronze trim | CV 400 | Normally Open to C | Pic and Globe Valve Linear Actuator 24VAC/DC Spring Return-up (RETRACTED) | with Auxiliary Switch | Bray

Brand: BraySKU: DG6-3-400/GASRE24-450-A

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for DG6-3-400/GASRE24-450-A

Product: DG6-3-400/GASRE24-450-A
Valve Size: 6"
2-Way / 3-Way: 3-Way
Valve Product Type: Globe Valve
Valve Position: NO to Common (Branch Open)
Valve End Connection: ANSI Class 125 Flanged
Assembly Cv: 400
Actuator Control Signal: On/Off;Floating;Modulating
Actuator Action: Spring Return
Fail Position: Fail NO to Common (Branch Open)
Actuator Features: Auxiliary Switches;Time Out;Enclosed Terminal Strip
Actuator Power Supply: 24 VAC
Actuator Conduit Connection: Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification: IP66
Actuator Stroke Time: Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
Close Off Pressure: 12
Weight: 153.9
