Documents: DG6-2-400SSC/GASEX24-450-HT
DG6-2-400SSC/GASEX24-450-HT | 6" | Flanged Globe valve | 2way | Cast Iron body | Stainless steel trim for Steam application | CV 400 | NC | NC | Pic and Globe Valve Linear Actuator 24VAC/DC Spring Return-down (EXTENDED) | Bray
6 inch | Flanged Globe valve | 2way | Cast Iron body | Stainless steel trim for Steam application | CV 400 | Normally Closed | Normally Closed | Pic and Globe Valve Linear Actuator 24VAC/DC Spring Return-down (EXTENDED)

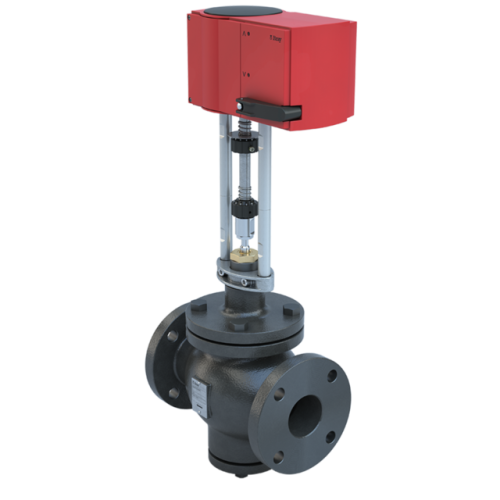

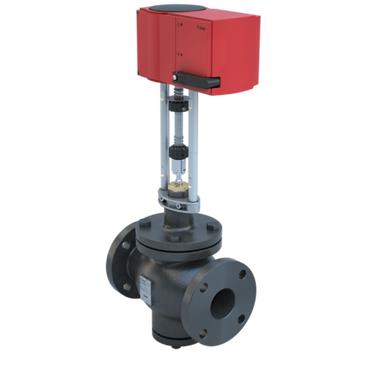

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG6-2-400SSC/GASEX24-450-HT
Overview Details for DG6-2-400SSC/GASEX24-450-HT
Specifications
- Product
- DG6-2-400SSC/GASEX24-450-HT
- Valve Size
- 6"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Globe Valve
- Valve Position
- Normally Closed
- Valve End Connection
- ANSI Class 125 Flanged
- Assembly Cv
- 400
- Actuator Control Signal
- On/Off;Floating;Modulating
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Features
- Time Out;Enclosed Terminal Strip
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- Knock Out - M20×1.5 (2×) and M16×1.5
- Actuator Area Classification
- IP66
- Actuator Stroke Time
- Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
- Close Off Pressure
- 13
- Weight
- 225.9
