Documents: DG6-2-400SSC/GASEX24-450

Product SubmittalTechnical Brochure More Info

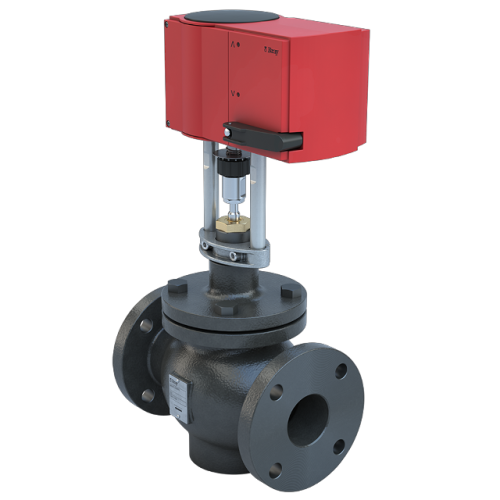

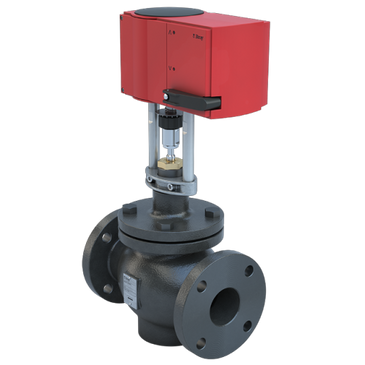

DG6-2-400SSC/GASEX24-450 | 6" 2 Way 24V On/Off/Float./Mod. Sp. Ret. NC 400 Cv. | Bray

Brand: BraySKU: DG6-2-400SSC/GASEX24-450
Bray | DG6-2-400SSC/GASEX24-450
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG6-2-400SSC/GASEX24-450
Jump to: Overview & Specifications Reviews

Overview Details for DG6-2-400SSC/GASEX24-450

6" 2 Way 24V On/Off/Float./Mod. Sp. Ret. NC 400 Cv.

  • 6" 2-Way Globe Valve
  • Chilled Water Hot Water Up to 50% Glycol 50# Steam / 0..337F
  • CV 400.0
  • 24 VAC/VDC
  • On/Off Floating Point or Proportional
  • Spring Return - Shaft Normally Extended - Normally Closed
  • 450 lb-f Torque
  • Screw Terminals
  • ANSI 125 Flange
  • Field Selectable Runtime
  • Close-Off 13 psi
  • Stainless Steel Trim
  • IP66 Enclosure
  • 6 2-Way Globe Valve
  • CV 400.0
  • 24 VAC/VDC
  • On/Off Floating Point and Proportional
  • Spring Return - Normally Closed
  • 450 in-lb
  • ANSI 125 Flange
  • Close-off 13 psi
  • 15-30 sec Runtime


Specifications

Product
DG6-2-400SSC/GASEX24-450
Valve Size
6"
2-Way / 3-Way
2-Way
Valve Product Type
Globe Valve
Valve Position
Normally Closed
Valve End Connection
ANSI Class 125 Flanged
Assembly Cv
400
Actuator Control Signal
On/Off;Floating;Modulating
Actuator Action
Spring Return
Fail Position
Fail Closed
Actuator Features
Time Out;Enclosed Terminal Strip
Actuator Power Supply
24 VAC
Actuator Conduit Connection
Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification
IP66
Actuator Stroke Time
Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
Close Off Pressure
13
Weight
224.9
