DG6-2-400SSC/GA24-562-HT | 6" | Flanged Globe valve | 2way | Cast Iron body | Stainless steel trim for Steam application | CV 400 | NC | NC | Pic and Globe Valve Linear Actuator 24VAC/DC Non-Spring Return | Bray

6 inch | Flanged Globe valve | 2way | Cast Iron body | Stainless steel trim for Steam application | CV 400 | Normally Closed | Normally Closed | Pic and Globe Valve Linear Actuator 24VAC/DC Non-Spring Return

Brand: BraySKU: DG6-2-400SSC/GA24-562-HT
Bray | DG6-2-400SSC/GA24-562-HT

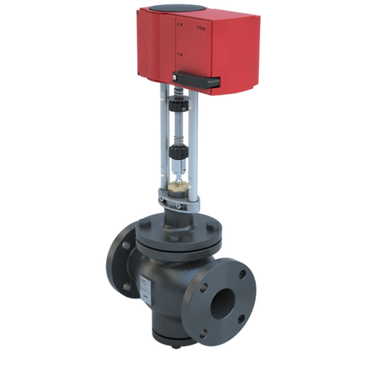

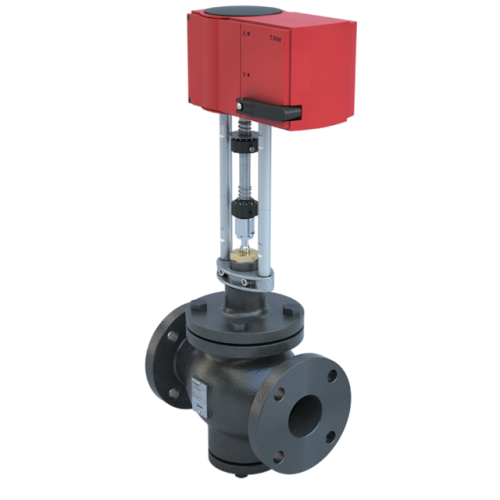

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG6-2-400SSC/GA24-562-HT

Overview Details for DG6-2-400SSC/GA24-562-HT



Specifications

Product
DG6-2-400SSC/GA24-562-HT
Valve Size
6"
2-Way / 3-Way
2-Way
Valve Product Type
Globe Valve
Valve Position
Normally Closed
Valve End Connection
ANSI Class 125 Flanged
Assembly Cv
400
Actuator Control Signal
On/Off;Floating;Modulating
Actuator Action
Non Spring Return
Fail Position
Fail Last
Actuator Features
Time Out;Enclosed Terminal Strip
Actuator Power Supply
24 VAC
Actuator Conduit Connection
Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification
IP66
Actuator Stroke Time
Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm
Close Off Pressure
16
Weight
222.7
