DG5-3-250/VAL-SRS15P | 5 Inch Flanged Globe Valve | 3 Way | 24 VAC Actuator | Bray
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG5-3-250/VAL-SRS15P
Documents and manuals
Overview
Details for DG5-3-250/VAL-SRS15P
5 Inch Flanged Globe Valve | 3 Way | 24 VAC Actuator
Description:

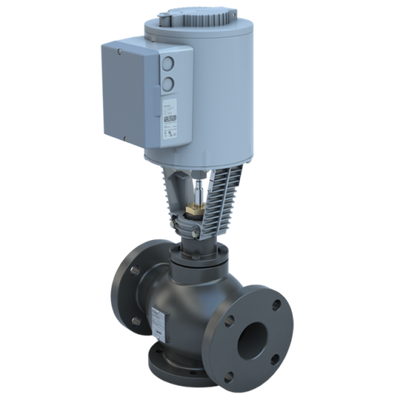

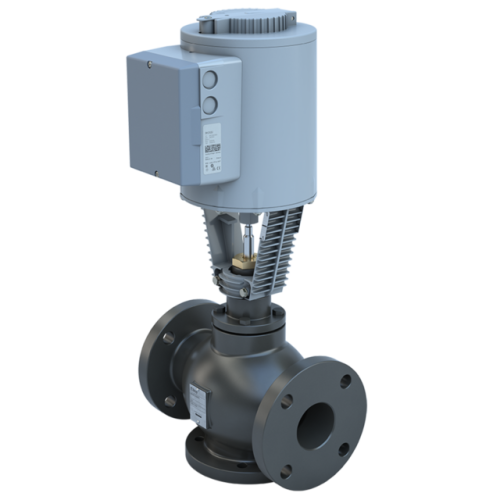

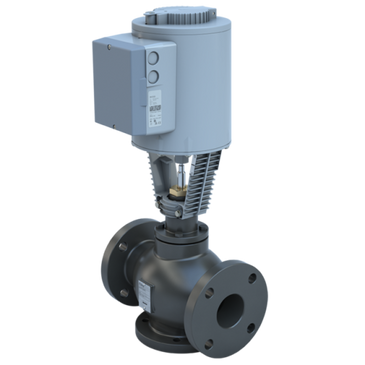

Bray DG5-3-250/VAL-SRS15P 5 Inch Flanged Globe Valve, 3 Way, 24 VAC Actuator.
Flanged globe valve model DG5-3-250 features:
- 5 inch.
Flanged globe valve model DG5-3-250 features:
- 5 inch.
- 125 mm.
- 250 Cv.
- Standard trim.
- 3 way.
- Cast iron flanged valve body.
- Bronze valve trim.
- Stainless steel stem.
Factory installed actuator model VAL-SRS15P features:
- 24 VAC.
- For hot water, chilled water or 50/50 glycol solutions.
Factory installed actuator model VAL-SRS15P features:
- 24 VAC.
- Spring return.
- Modulating.
- NEMA 1 enclosure.
- Electro-hydraulic action for superior close-off pressures.
- Visual and electronic position indication.
The Bray DG Series Globe Valves provide stable and accurate control of both water, 50/50 glycol and steam , in heat exchangers, fan coil units, VAV reheat coils, and air handling units up to 900 GPM. These globe valves feature rangability of greater than 100:1 to provide precise control. Two way standard trim valves provide an equal percentage flow characteristic for use with hot water and chilled water. Two way stainless trim valves are recommended for steam applications. 3-way mixing valves provide a linear flow characteristic.
All DG series globe valves feature a cartridge style packing, which is easily replaceable while the valve is in-line. Constant plug guiding and precision-machined metal to metal seating assures ANSI Class IV shutoff (.01%) which provides low leakage and efficient operation.
The Bray VAL series spring return electro hydraulic actuators provide precise modulating control of Bray DG Series Globe Valves. These actuators use electro hydraulic force to achieve superior close-off pressure ratings. The stroke of these actuators is up at the low input signal condition, and down in the high signal input condition.
- Actuator Power:24V
- Flow:3 Way
- Valve Size (In.):5
Specifications
- Product
- DG5-3-250/VAL-SRS15P
- Valve Size
- 5"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Globe Valve
- Valve Position
- NO to Common (Branch Open)
- Valve End Connection
- ANSI Class 125 Flanged
- Assembly Cv
- 250
- Actuator Control Signal
- Modulating
- Actuator Action
- Spring Return
- Fail Position
- Fail NO to Common (Branch Open)
- Actuator Features
- Enclosed Terminal Strip
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- 1/2" NPSM
- Actuator Area Classification
- IP66;NEMA 4
- Actuator Stroke Time
- Power Stroke 120 Seconds, Spring Stroke 20 Seconds
- Close Off Pressure
- 25
- Weight
- 157.4
