DG5-2-250SSC/GASEX24-450 | 5" 2 Way 24V On/Off/Float./Mod. Sp. Ret. NC 250 Cv. | Bray

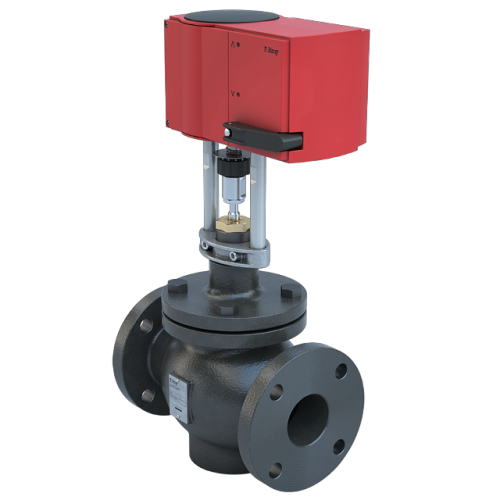

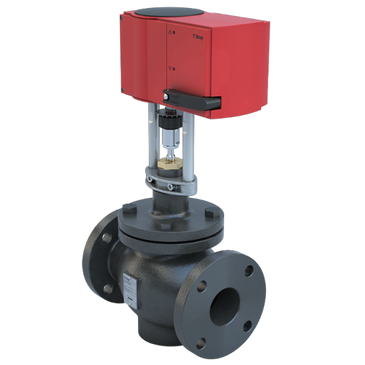

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG5-2-250SSC/GASEX24-450
Documents and manuals
Bray DG5-2-250SSC/GASEX24-450 Documents
Overview
Details for DG5-2-250SSC/GASEX24-450
5" 2 Way 24V On/Off/Float./Mod. Sp. Ret. NC 250 Cv.
- 5" 2-Way Globe Valve
- Chilled Water Hot Water Up to 50% Glycol 50# Steam / 0..337F
- CV 250.0
- 24 VAC/VDC
- On/Off Floating Point or Proportional
- Spring Return - Shaft Normally Extended - Normally Closed
- 450 lb-f Torque
- Screw Terminals
- ANSI 125 Flange
- Field Selectable Runtime
- Close-Off 19 psi
- Stainless Steel Trim
- IP66 Enclosure
- 5 2-Way Globe Valve
- CV 250.0
- 24 VAC/VDC
- On/Off Floating Point and Proportional
- Spring Return - Normally Closed
- 450 in-lb
- ANSI 125 Flange
- Close-off 19 psi
- 15-30 sec Runtime
Specifications
- Product
- DG5-2-250SSC/GASEX24-450
- Valve Size
- 5"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Globe Valve
- Valve Position
- Normally Closed
- Valve End Connection
- ANSI Class 125 Flanged
- Assembly Cv
- 250
- Actuator Control Signal
- On/Off;Floating;Modulating
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Features
- Time Out;Enclosed Terminal Strip
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- Knock Out - M20×1.5 (2×) and M16×1.5
- Actuator Area Classification
- IP66
- Actuator Stroke Time
- Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
- Close Off Pressure
- 19
- Weight
- 167.9
