Get Special Pricing!
DG3-3-100/GASRE24-450-A | 3" | Flanged Globe valve | 3way | Cast Iron body | Bronze trim | CV 100 | Normally Open to C | Pic and Globe Valve Linear Actuator 24VAC/DC Spring Return-up (RETRACTED) | with Auxiliary Switch | Bray
3 inch | Flanged Globe valve | 3way | Cast Iron body | Bronze trim | CV 100 | Normally Open to C | Pic and Globe Valve Linear Actuator 24VAC/DC Spring Return-up (RETRACTED) | with Auxiliary Switch

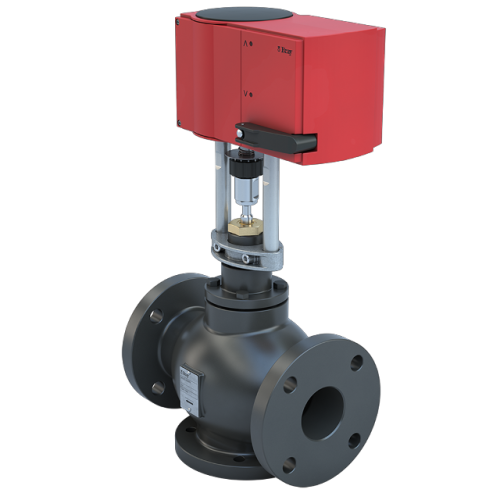

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG3-3-100/GASRE24-450-A
Documents and manuals
Bray DG3-3-100/GASRE24-450-A Documents
Overview
Details for DG3-3-100/GASRE24-450-A
Specifications
- Product
- DG3-3-100/GASRE24-450-A
- Valve Size
- 3"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Globe Valve
- Valve Position
- NO to Common (Branch Open)
- Valve End Connection
- ANSI Class 125 Flanged
- Assembly Cv
- 100
- Actuator Control Signal
- On/Off;Floating;Modulating
- Actuator Action
- Spring Return
- Fail Position
- Fail NO to Common (Branch Open)
- Actuator Features
- Auxiliary Switches;Time Out;Enclosed Terminal Strip
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- Knock Out - M20×1.5 (2×) and M16×1.5
- Actuator Area Classification
- IP66
- Actuator Stroke Time
- Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
- Close Off Pressure
- 44
- Weight
- 77.6
