DG3-2-100SS/GASRE24-450-A-HT-WS | 3" | Flanged Globe valve | 2way | Cast Iron body | Stainless steel | CV 100 | SS | NO | Pic and Globe Valve Linear Actuator 24VAC/DC Spring Return-up | SW | Bray

3 inch | Flanged Globe valve | 2way | Cast Iron body | Stainless steel trim for Steam application | CV 100 | SS | Normally Open | Pic and Globe Valve Linear Actuator 24VAC/DC Spring Return-up (RETRACTED) | with Auxiliary Switch | Weather Sheild for GA450/562

Brand: BraySKU: DG3-2-100SS/GASRE24-450-A-HT-WS

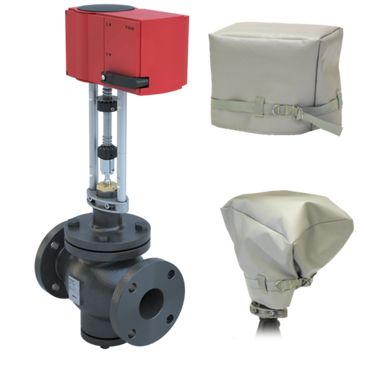

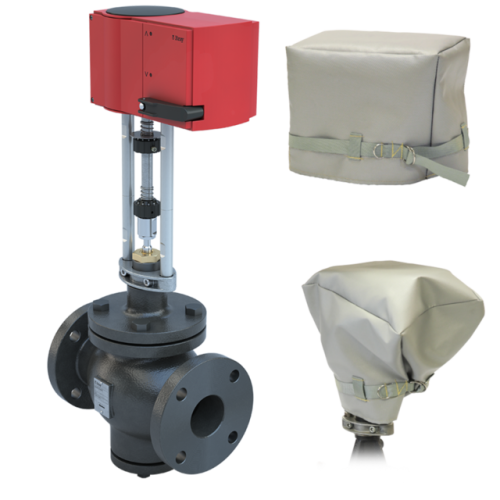

Bray | DG3-2-100SS/GASRE24-450-A-HT-WS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG3-2-100SS/GASRE24-450-A-HT-WS

Overview Details for DG3-2-100SS/GASRE24-450-A-HT-WS



Specifications

Product
DG3-2-100SS/GASRE24-450-A-HT-WS
Valve Size
3"
2-Way / 3-Way
2-Way
Valve Product Type
Globe Valve
Valve Position
Normally Open
Valve End Connection
ANSI Class 125 Flanged
Assembly Cv
100
Actuator Control Signal
On/Off;Floating;Modulating
Actuator Action
Spring Return
Fail Position
Fail Open
Actuator Features
Auxiliary Switches;Time Out;Enclosed Terminal Strip
Actuator Power Supply
24 VAC
Actuator Conduit Connection
Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification
IP66
Actuator Stroke Time
Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
Close Off Pressure
45
Weight
92.6
